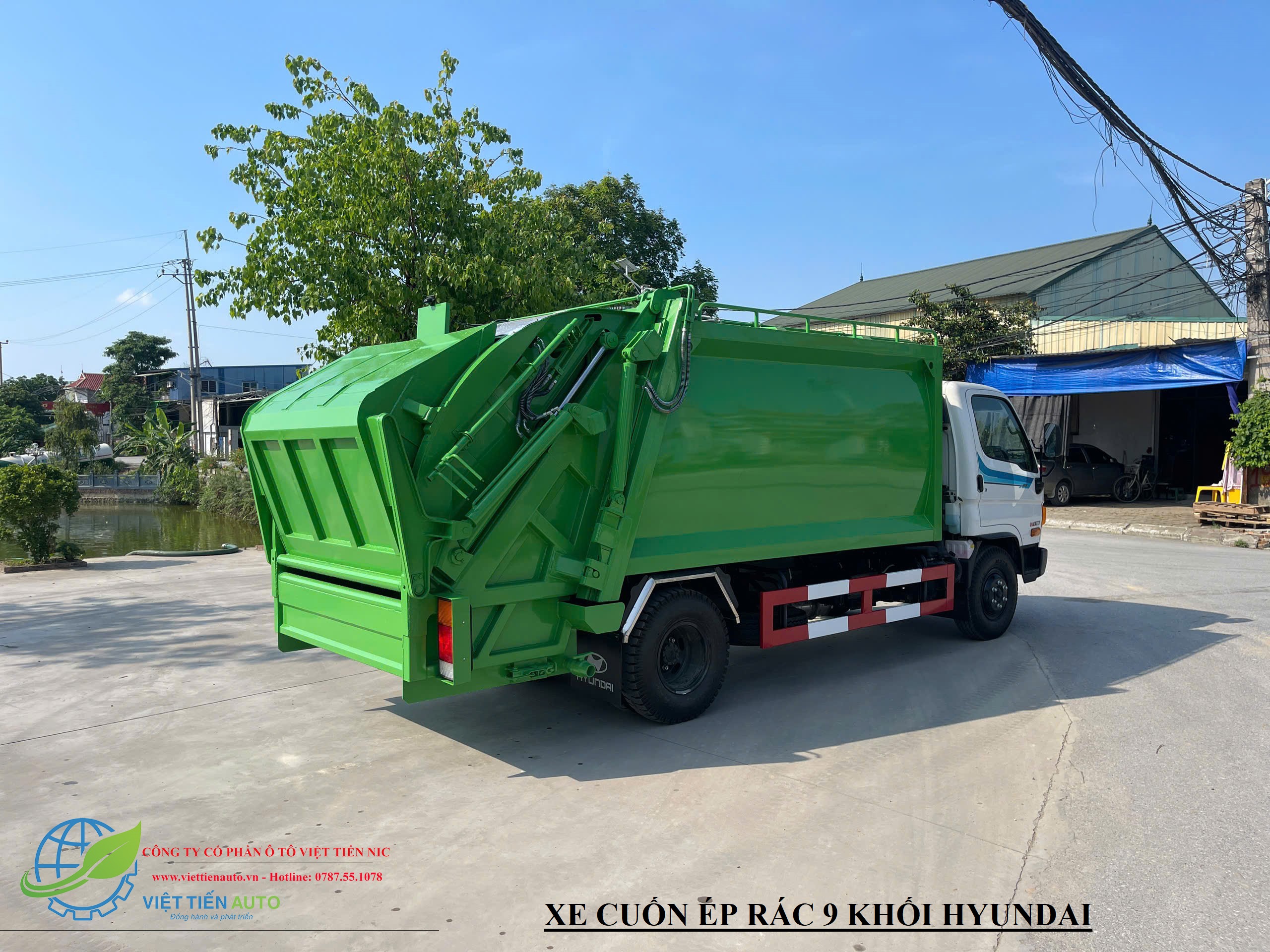

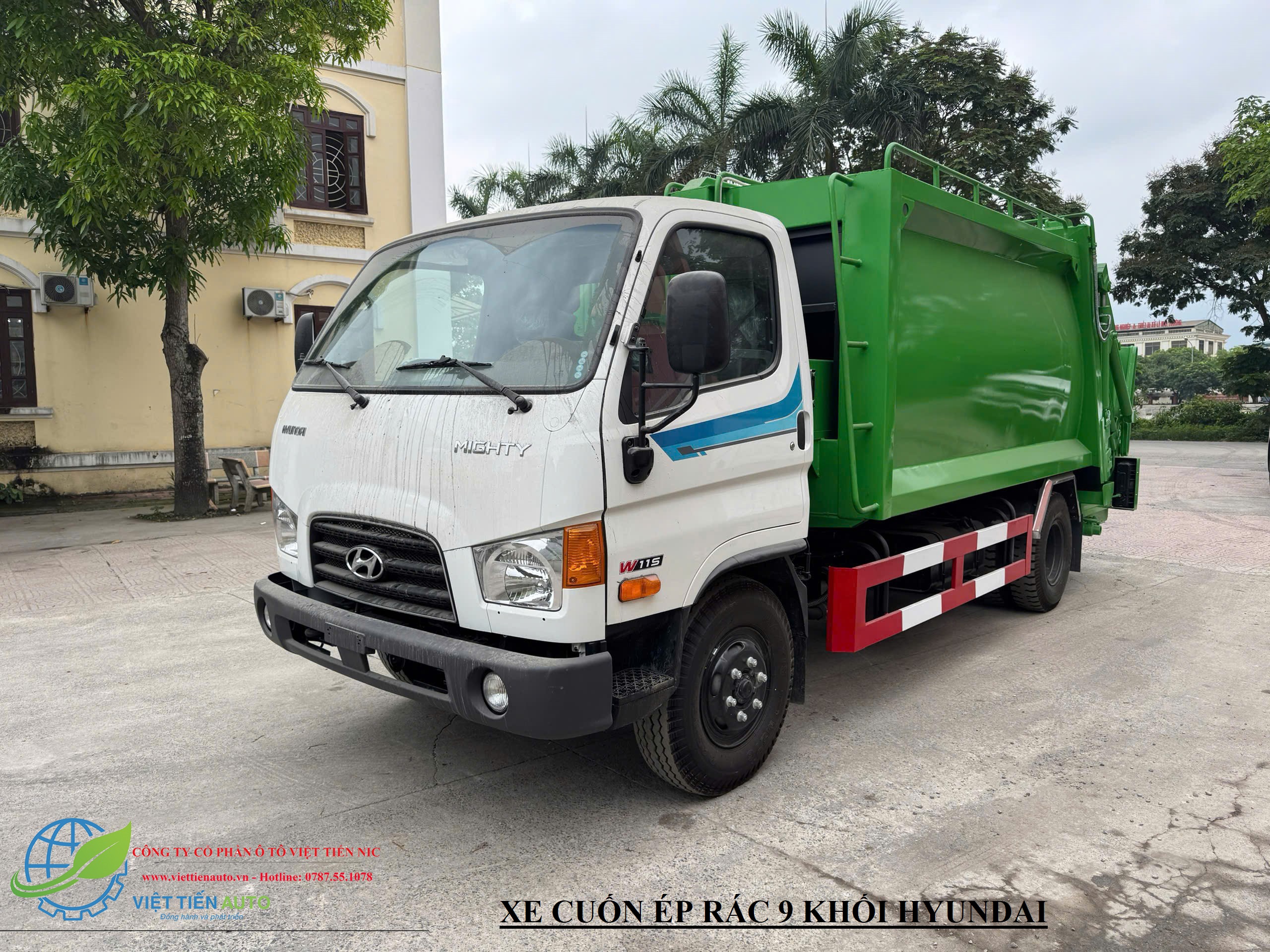

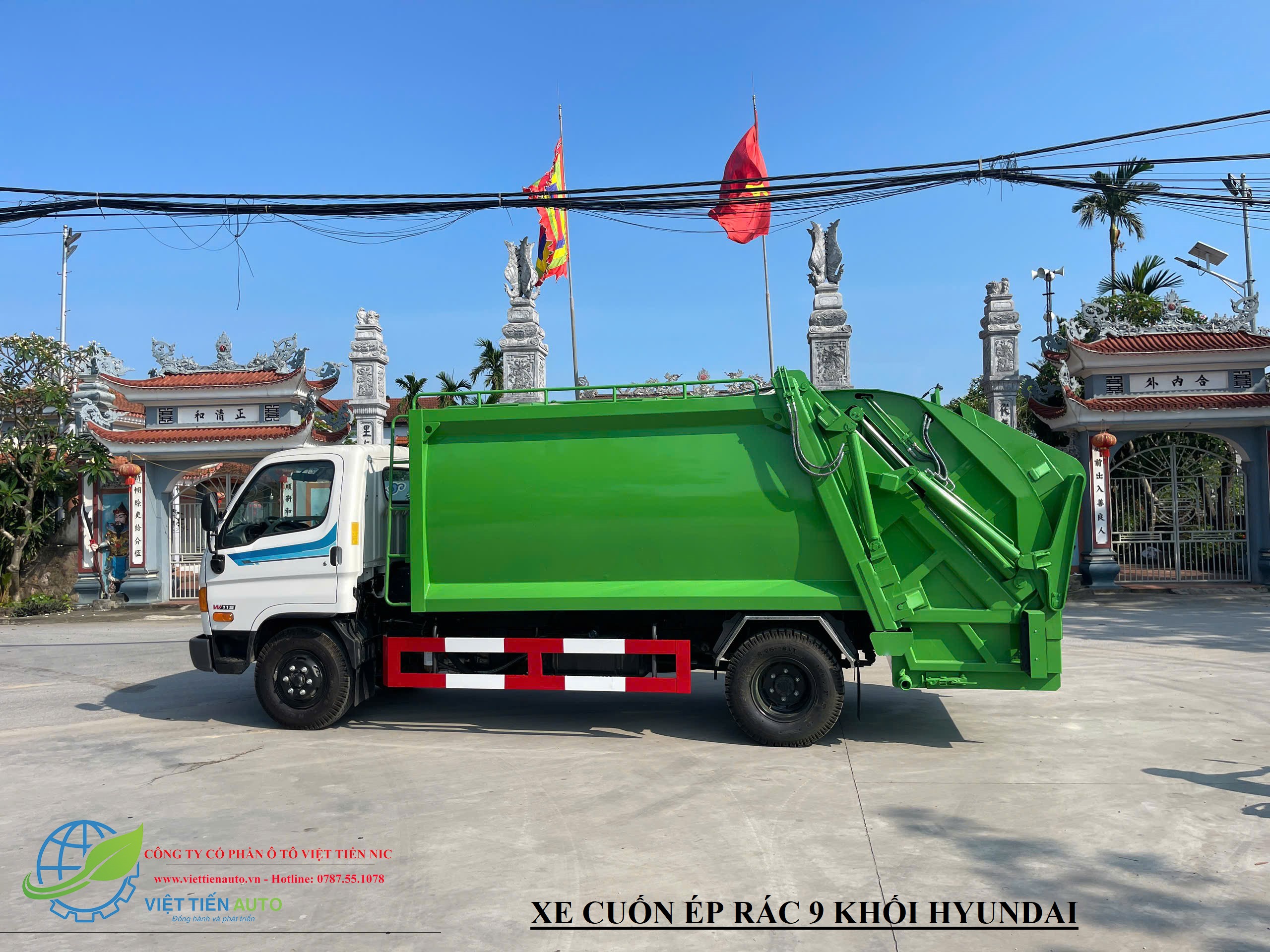

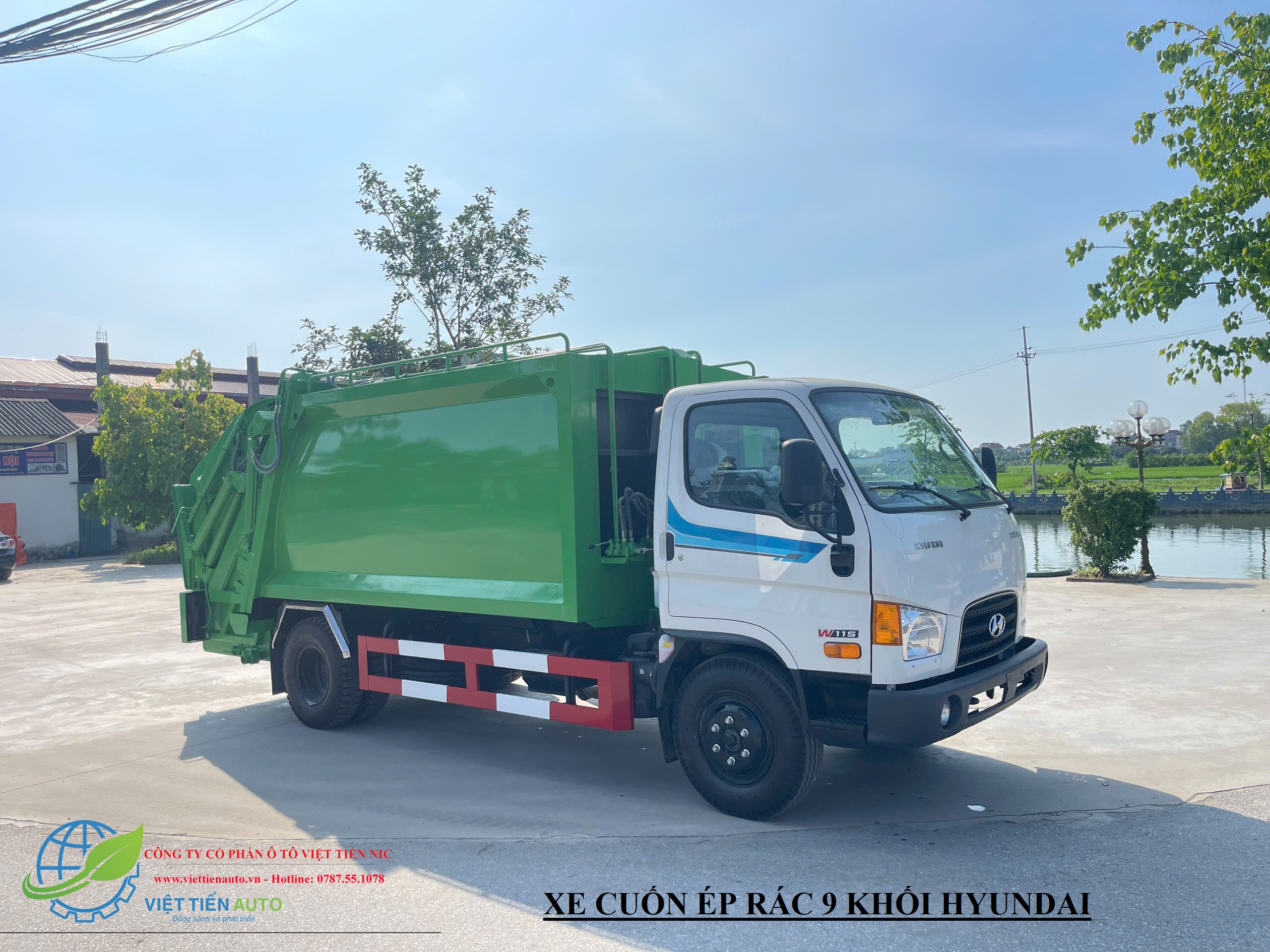

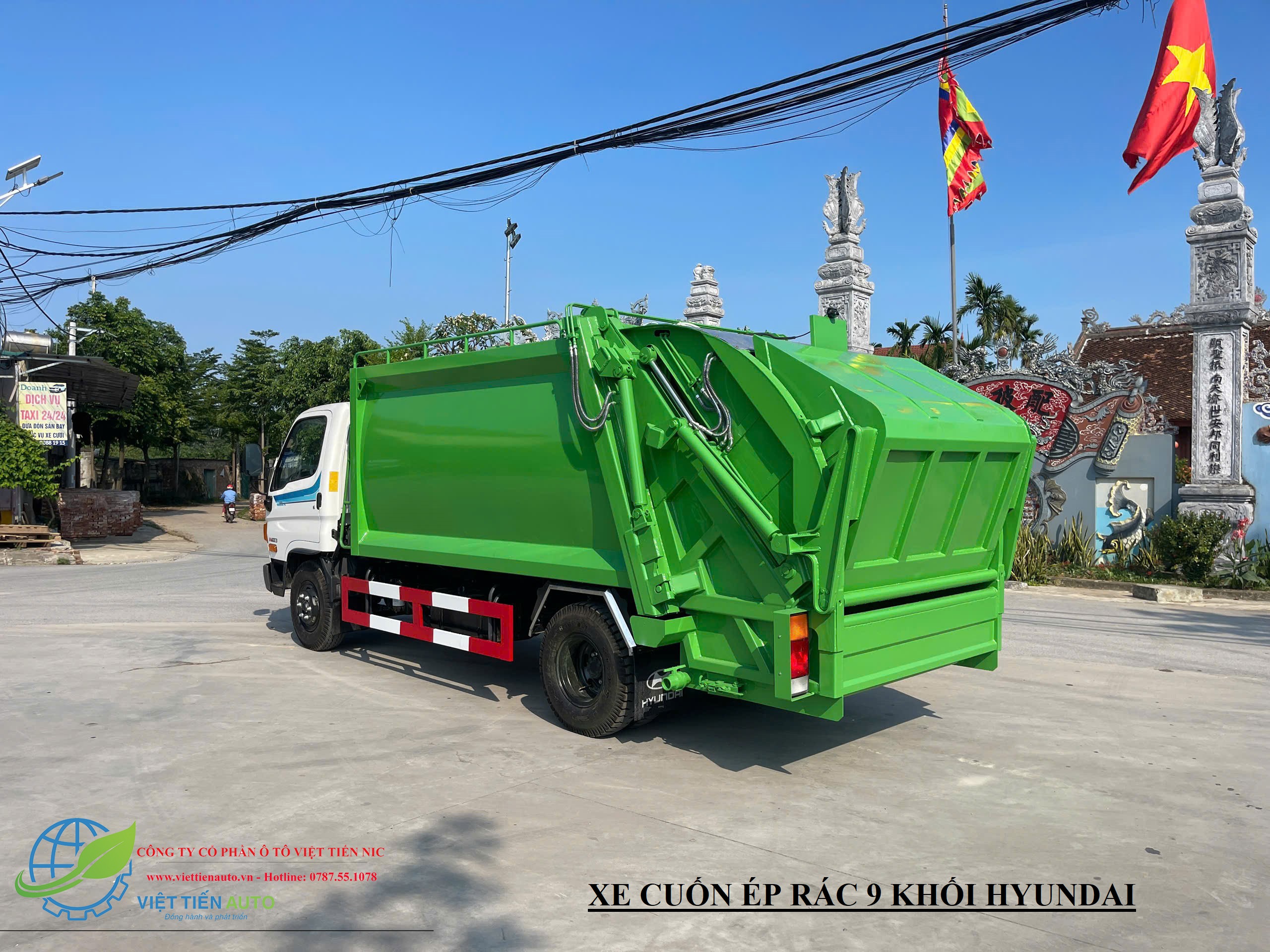

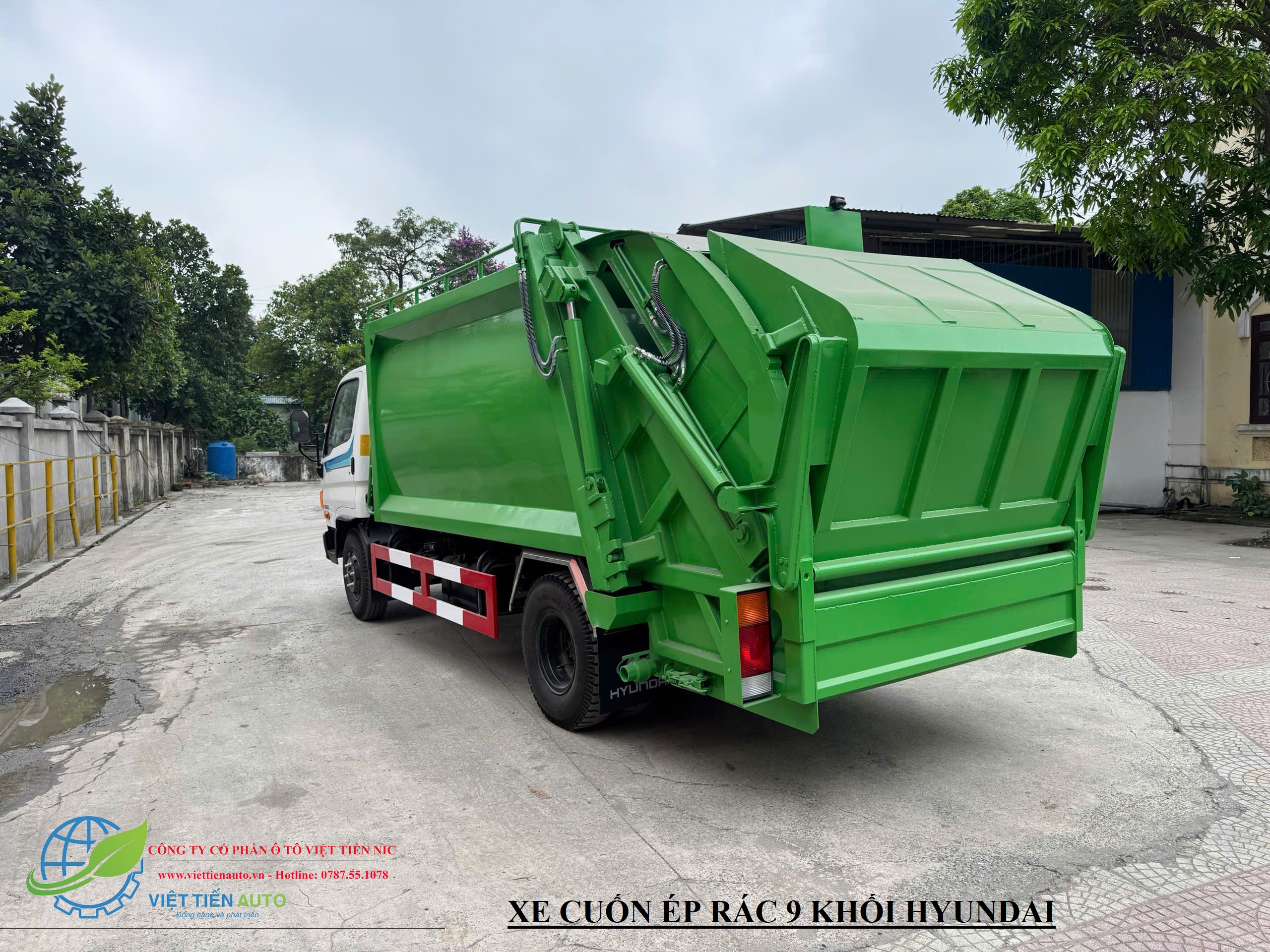

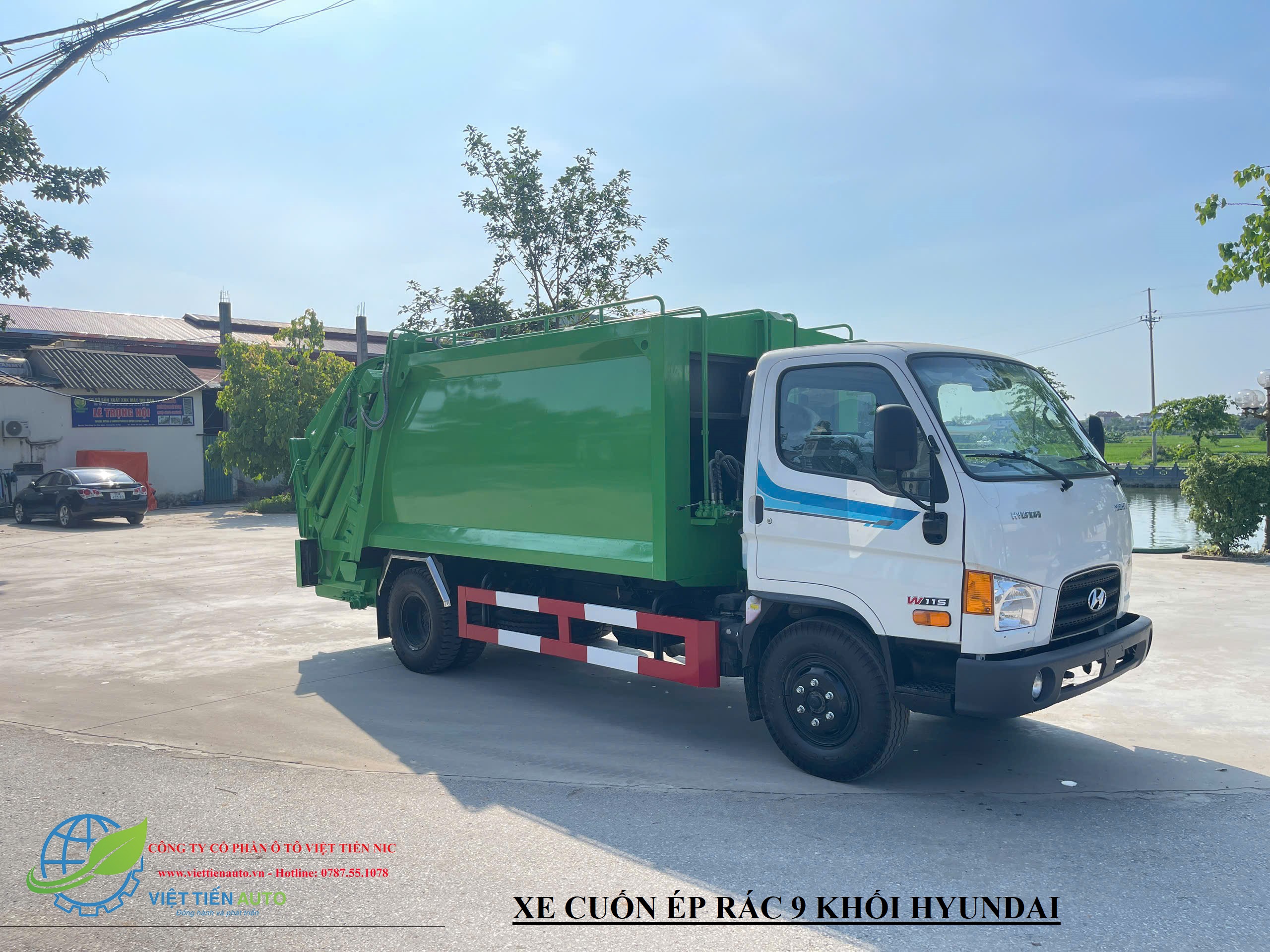

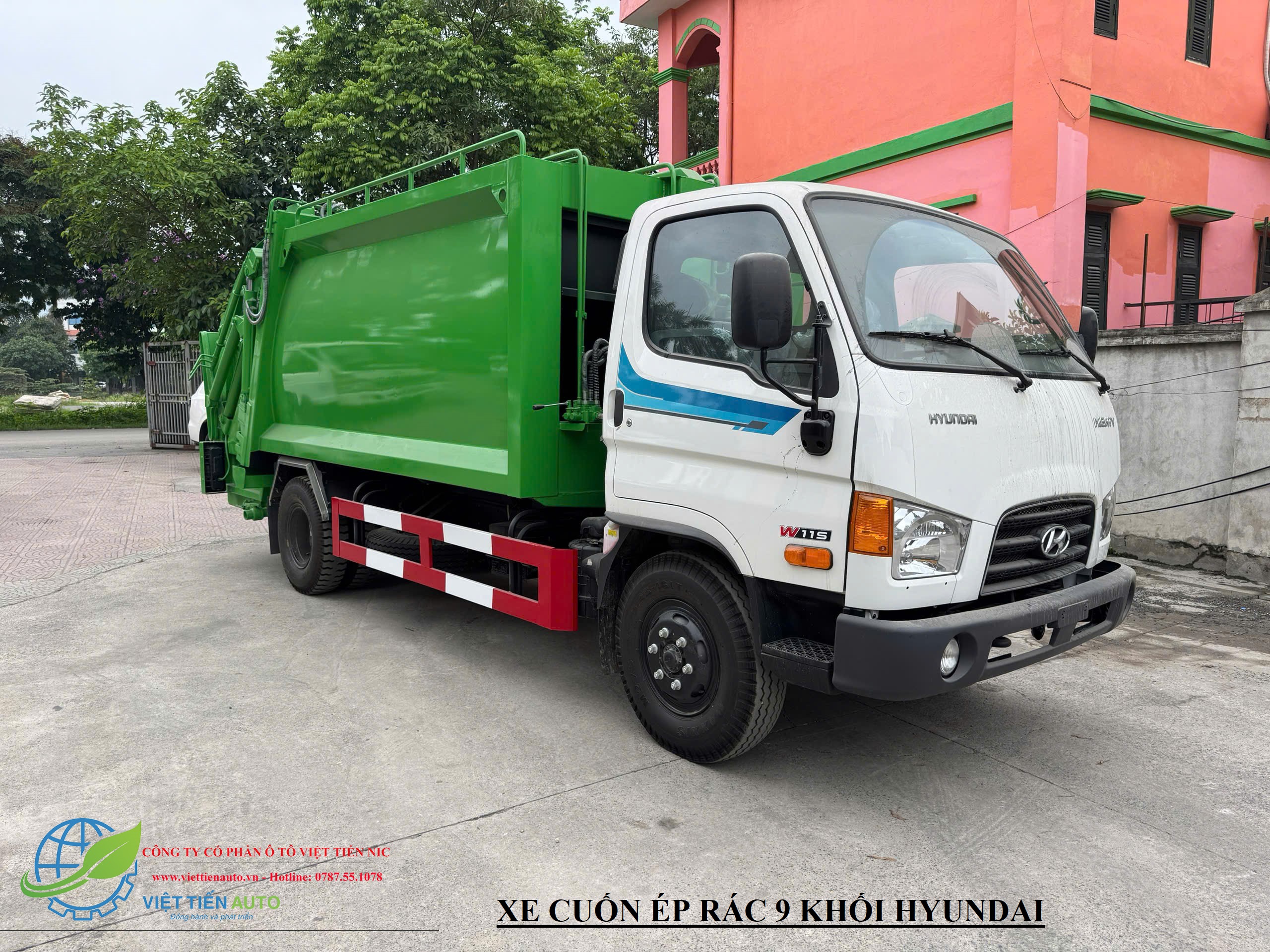

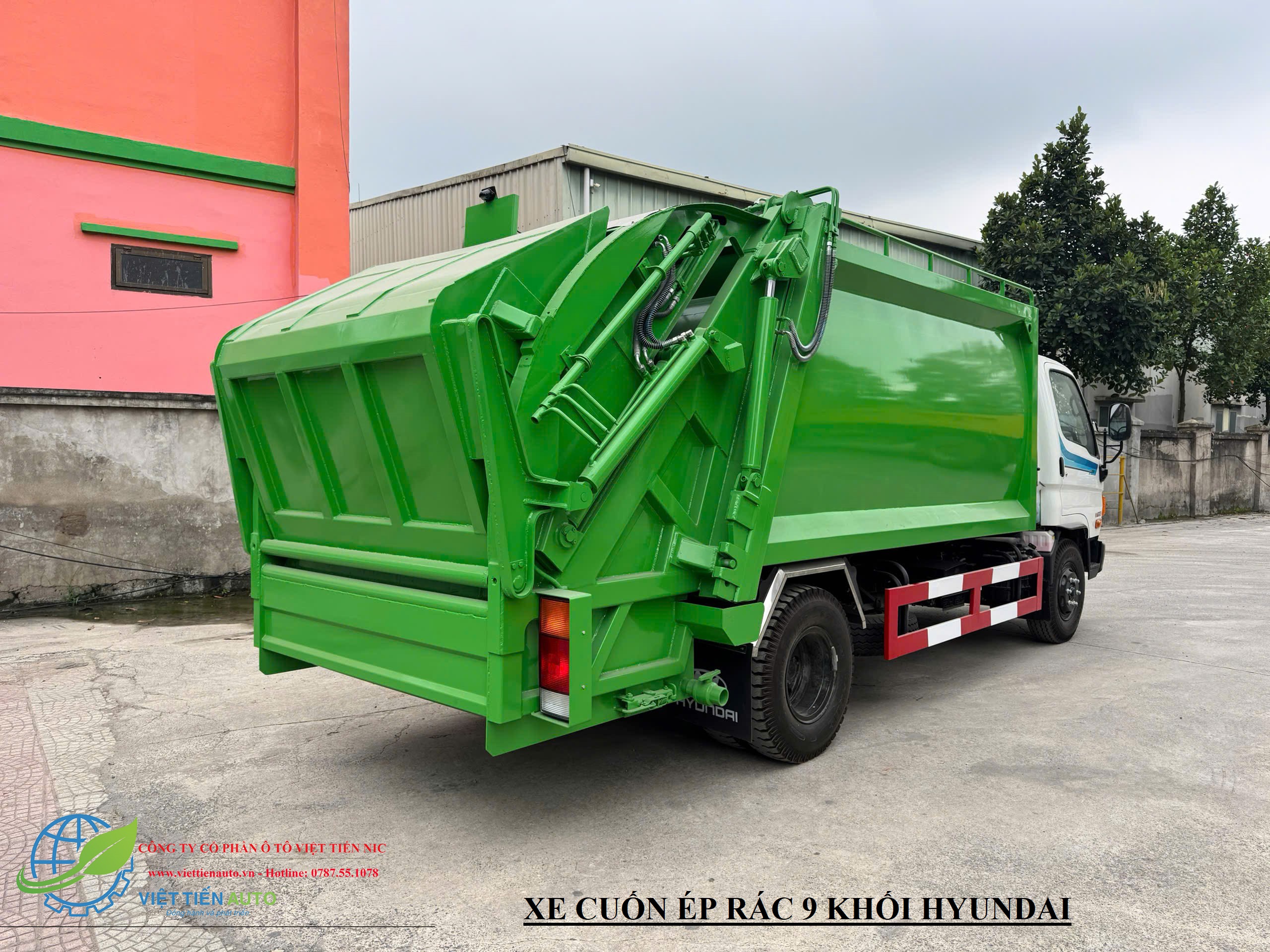

HYUNDAI 9-cubic-meter garbage compactor truck with a 4-ton load capacity

Product code: HYUNDAIW11S
Group: Garbage compactor truck
Style: Garbage truck
Gross Vehicle Weight Rating: 4050 kg
Wheel construction formula: 4x2 (2 axles, 1 driven axle)
Manufacturer: Hyundai
Payload range: From 3.5 tons to under 8 tons
Price range: From 300 million to under 600 million VND

Details of HYUNDAI 9-cubic-meter garbage compactor truck with a 4-ton load capacity

Introduction

Hyundai 4-ton garbage compactor truck with a 9-cubic-meter body is a specialized product in the field of household waste collection and treatment. Equipped with advanced garbage compaction technology, the product has the ability to compress waste with high compression ratio, helping to increase transportation efficiency and reduce collection frequency.

Compact design and automatic control system help operators use easily. The product is particularly suitable for waste collection in residential areas, markets, schools and hospitals.

Outstanding Advantages:HYUNDAI 9-cubic-meter garbage compactor truck with a 4-ton load capacity

Advanced garbage compaction system
High compression ratio
Compact design
Automatic control system
High transportation efficiency
Easy operation
Environmentally friendly

Applications:

The product is particularly suitable for waste collection in residential areas, markets, schools and hospitals.

Detailed Technical Specifications:

Below are the complete technical specifications and detailed information of the product:

Technical Specifications Table for 4-Ton Hydraulic Trash Compactor Truck Hyundai with 9-Compartment Body

STT	Content	Detailed specifications
A	VEHICLE PART
1	Vehicle type	Garbage truck
2	Number of types	HYUNDAI W11S
3	Brand	HYUNDAI
4	Emission standards	Euro V
5	Vehicle quality	100% new
6	Country of origin	Vietnam
7	Year of vehicle assembly	202 5
8	Year of manufacture of completed vehicle	202 5
9	Total mass	10.600 kg
10	Dead weight	6. 355 kg
11	Cargo volume	4.050 kg
12	Car size LxWxH	6.6 30 x 2 . 000 x 2.300 (mm) *
13	Inner dimensions of the box LxWxH	2,670/2,370 x 2,100/1,700 x 1,760 mm *
14	Hill climbing ability	3 4.82 (%)
15	Ground clearance	2000 ( mm )
16	maximum speed	93 . 4 (km/h)
17	Number of seats	03 ( people)
18	Cabin	White (or) Blue , flip type, air conditioning, central electric control glass.
19	Engine
-	Type	D4GA
-	Cylinder capacity	3,933 (cc)
-	Compression ratio	17. 1 :1
-	Cylinder diameter x Piston stroke	103 x 118 (mm)
-	Maximum capacity	125 kw / 2500 rpm
-	Maximum torque	608/1400 Nm/rpm
-	Fuel type, number of strokes, number of cylinders, layout, cooling type	Diesel, 4-stroke, 4 -cylinder in-line, water-cooled , turbocharged.
20	Fuel tank	100 liters
21	Gear	Manual transmission, 5 forward gears, 1 reverse gear, synchronized .
22	Clutch	Single disc dry friction spring type, hydraulic drive, pneumatic assist
23	Suspension system
-	Front tweezers:	Dependent, leaf spring, hydraulic shock absorber .
-	Rear leaf spring:	Dependent, leaf spring.
24	Brake system
-	Main brake:	Hydraulic, pneumatically controlled, dual circuit.
-	Hand brake:	Mechanical, acting on the output shaft of the gearbox.
25	Steering system	Recirculating ball screw type, full hydraulic power assist . Tilt angle and height can be adjusted.
26	Tire size	8.25 0 – 16 (7 cakes)
27	steering mechanism type	Screw – Ball nut, Hydraulic power steering
28	Electrical system
-	Generator	24V – 50A
-	Starter	24V – 4.5 kW
-	Battery	12Vx02 – 70 Ah
B.	SPECIALIZED SYSTEM
1	Container volume	10 blocks
2	Garbage collection control	Mechanical, hand lever control.
3	Press mechanism type	- Thanks to the hydraulic cylinder that helps open and close the pressing blade and move the pressing mechanism to receive garbage from the garbage chute and press the garbage into the container. - The reciprocating pressing mechanism slides along the groove during the pressing process due to the double-acting hydraulic cylinders.
4	Type garbage loading mechanism	- Using hydraulic cylinder
5	Lifting and lowering the press barrel	The compactor is raised and lowered during the process of discharging waste from the container thanks to 02 double-acting hydraulic cylinders lifting the compactor. The lock of the compactor with the container is linked to the compactor lifting cylinder.
6	Hydraulic system
7	Hydraulic pump	Type : Piston Pump (Curved Pump) . Import origin
8	Tail limit lifting and trash pushing control valve	Import origin
9	Control valve to press and raise and lower the trash chute	Import origin
10	Single hydraulic cylinder	Imported materials and components, assembled in Vietnam .
11	Stage hydraulic cylinder	Imported materials and components , assembled in Vietnam, 2-way impact :
12	Hydraulic oil tank	Capacity: 9.0 liters.
13	Electrical equipment and warning system
-	Priority rotating light	Quantity 01 piece, placed on top of the box.
-	Work position lighting behind the trash compactor.	Switch installed at control position. - Quantity 01 piece in the box. - Quantity: 02 pieces on top of the tail of the box
-	Other traffic light systems	According to road traffic standards.
-	Equip with 02 additional signal light clusters	Installed at the rear of the vehicle, on top of the trunk, to warn other vehicles further when the vehicle is in operation.
-	Equipped with 04 left-right turn warning lights	Installed on both sides of the truck bed.
14	Safety equipment
-	Footholds and handrails	Equipped with pedals and handrails on both sides behind, enough room for workers to operate, ensuring labor safety.
-	Safety bar	02 trash compactor bars, ensuring safety during cleaning and maintenance .
-	Hip insurance	02 side protection bumpers
-	Mudguard	02 mudguards
-	Anti-bucket bowl	0 6 bowls , 04 dishes
15	Wastewater sealing and containment system
-	Water collection system	Across the body of the car
-	Seal the trash can	Staggered installation in layers , with inclined corners to catch water - lead water down to the tank (high durability, no damage )
-	Waste water tank	Equipped with a wastewater tank below the press tank, capacity 350 liters. There is 01 wastewater discharge valve and 02 quick-action doors for cleaning the wastewater tank.
16	Logo-lettering	Side of the truck
17	Vehicle equipment	01 spare wheel ; 01 hydraulic jack and wrench ; 01 CD player and AM/FM radio ; 01 standard tool set ; warranty book, user manual.

Additional Information:

The Hyundai 9m³ garbage compactor truck is equipped with modern features and advanced safety systems. The product meets all international standards for environment and occupational safety.
