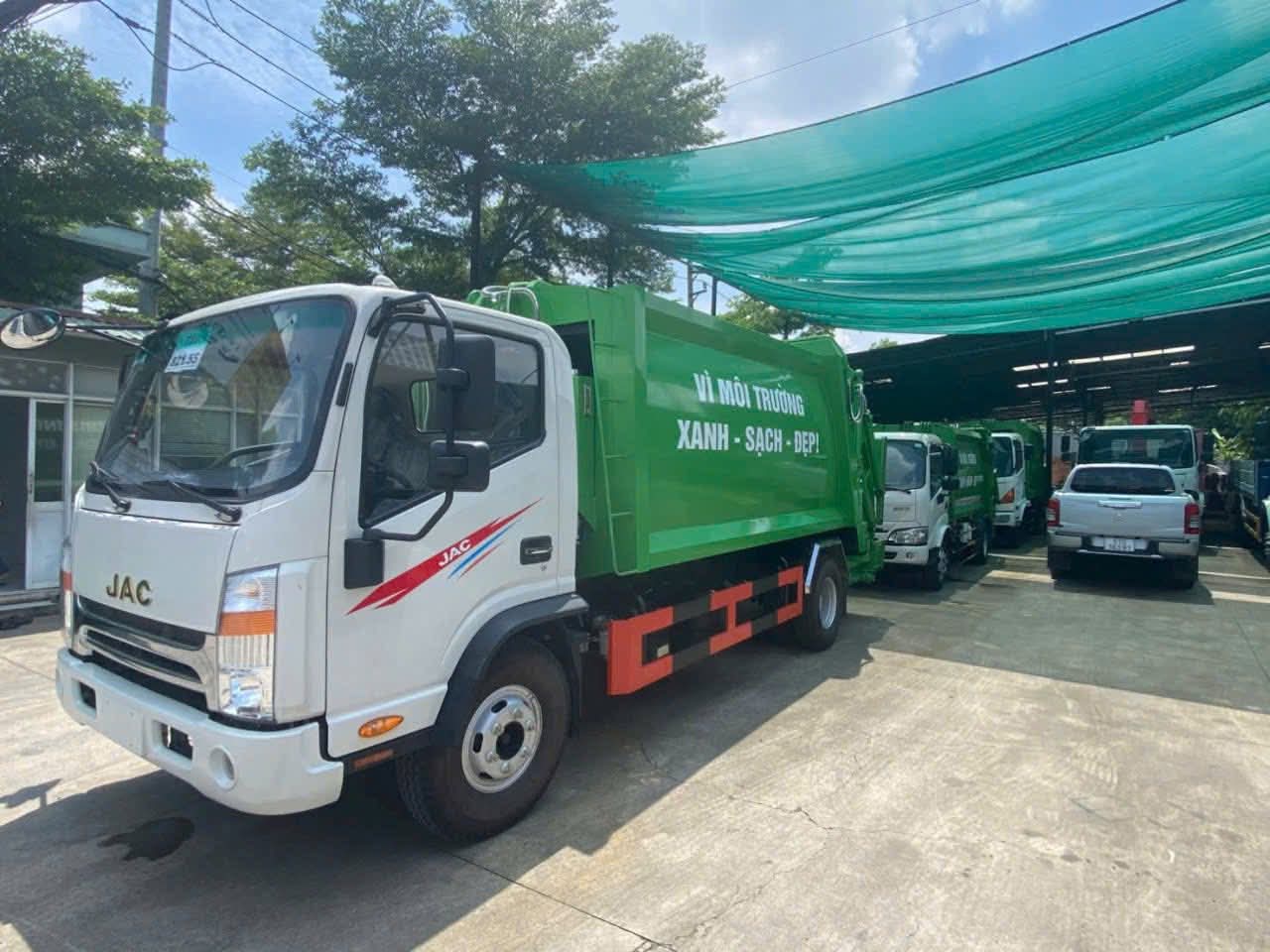

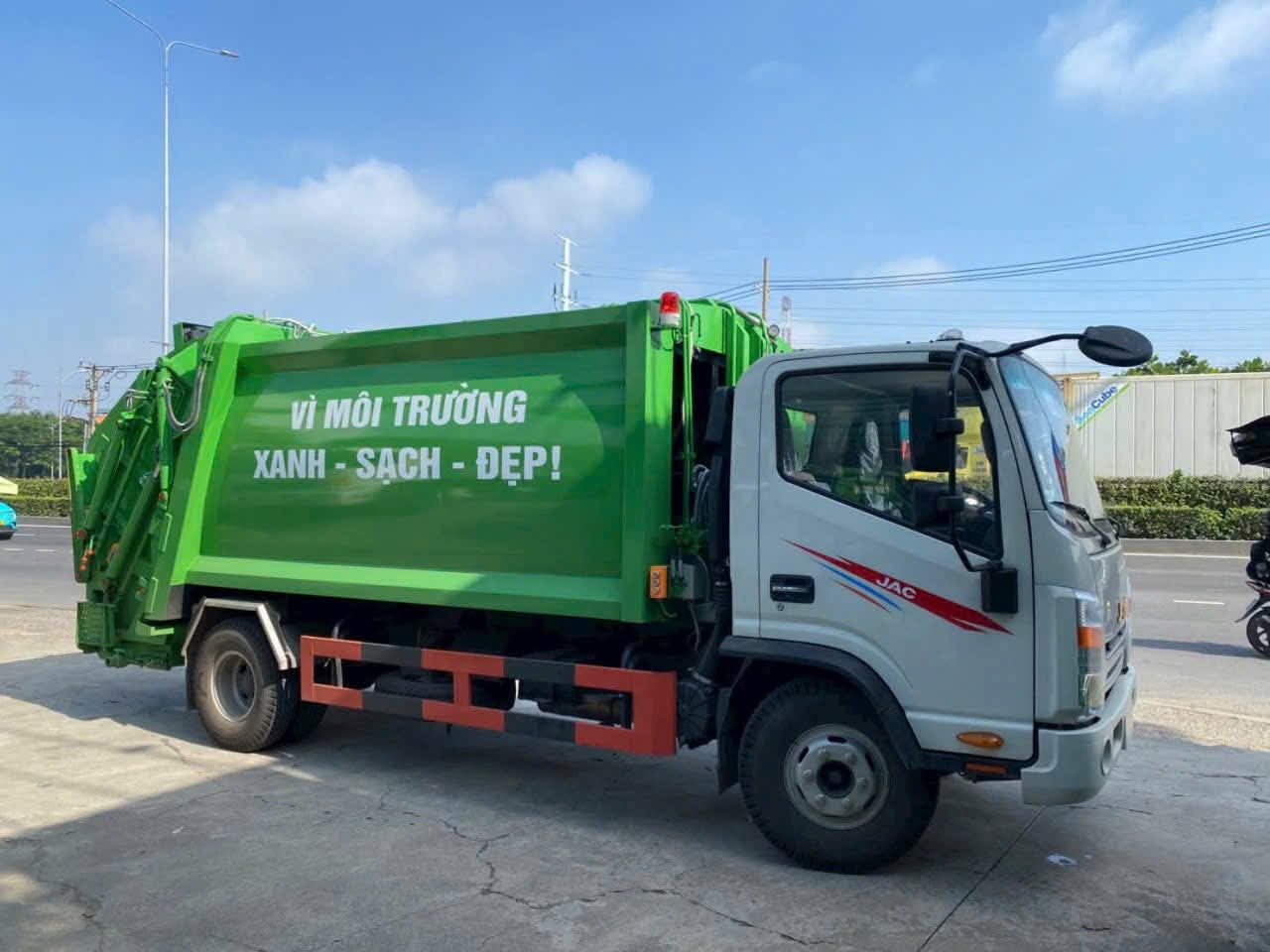

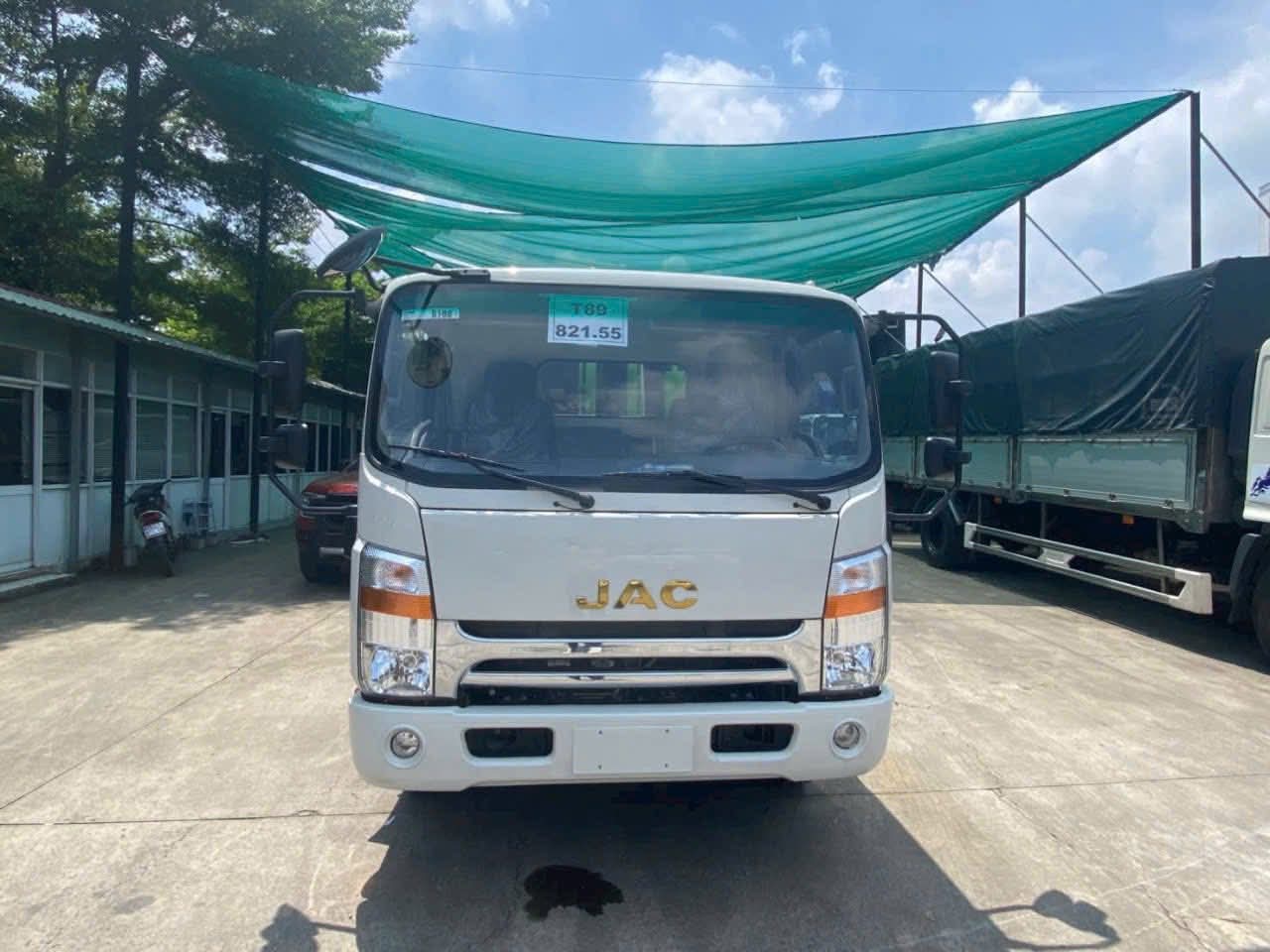

JAC 10m³ Garbage Compactor Truck

Product code: ER-10K-JAC
Group: Garbage compactor truck
Style: Garbage truck
Gross Vehicle Weight Rating: 11000 kg
Wheel construction formula: 4x2 (2 axles, 1 driven axle)
Manufacturer: Howo
Payload range: From 1 ton to under 3.5 tons
Price range: From 300 million to under 600 million VND

Details of JAC 10m³ Garbage Compactor Truck

Introduction

The JAC 10m³ garbage compactor truck is a medium-sized specialized product in the garbage compactor line with modern design and high efficiency. Equipped with advanced garbage compaction technology and fuel-efficient engine, the product has the ability to compress waste with high compression ratio and stable operation.

Robust design and automatic control system help operators use easily. The product is particularly suitable for waste collection in medium residential areas, schools and urban areas.

Detailed Technical Specifications:

Below are the complete technical specifications and detailed information of the product:

ITEMS, TECHNICAL CRITERIA			DETAILED CONTENT
I. General vehicle specifications
1. About the car
Vehicle type			Garbage truck
Brand number type			JAC – N650 E5/MTV-ER
Emission standards			E5
Origin			Vietnam
Base vehicle year of manufacture			2025
Year of manufacture of garbage truck			2025
Quality			100% new
Color			White
Wheel formula			4x2
Number of people allowed to carry			03 people
2. Weight
Total load			11,000			kg
Self-respect			6,555			kg
Load			4,250			kg
3. Size
Wheelbase			3,855			mm
Outer dimensions (LxWxH)			6950 x 2300 x 2850			mm
4. Engine
Model			D30TCIE1
Type			Diesel engine, 4-stroke, 4-cylinder in-line, water-cooled, turbocharged.
Maximum power			115 kW- (3,200 rpm) rpm
Maximum torque			385N/m/2700rpm)
Cylinder diameter x piston stroke			95 x 105			mm
Cylinder capacity			2,977			cc
Compression ratio			17:01
Fuel supply system			Electronically controlled fuel injection
5. Clutch		Type	Pneumatic hydraulic brake system, 2 independent lines control
6. Gearbox		Gearbox type
		Type	6 forward gears, 1 reverse gear; synchronized from 2nd to 6th gear
7. Steering system			Hydraulically assisted screw type
8. Brake system	Brake system		Pneumatic hydraulic brake system, 2 independent lines control
	Parking brake		Drum type, mechanical drive, acting on the gearbox secondary shaft
	Exhaust brake		Have
9. Tire size			8:25 - 16
10. Cabin			Tilting cabin with torsion bar mechanism and safety locking devices
11. Suspension system
Front axle suspension			Multi-leaf springs with hydraulic shock absorbers
Rear axle suspension			Multi-leaf tweezers
12. Characteristics
Climbing ability			21.8		(%)
Full load maximum speed			86.29		km/h
Fuel tank capacity			120		Liter
Final gear ratio			18.8
Standard equipment			Air conditioning, power windows, central locking, CD&AM/FM radio

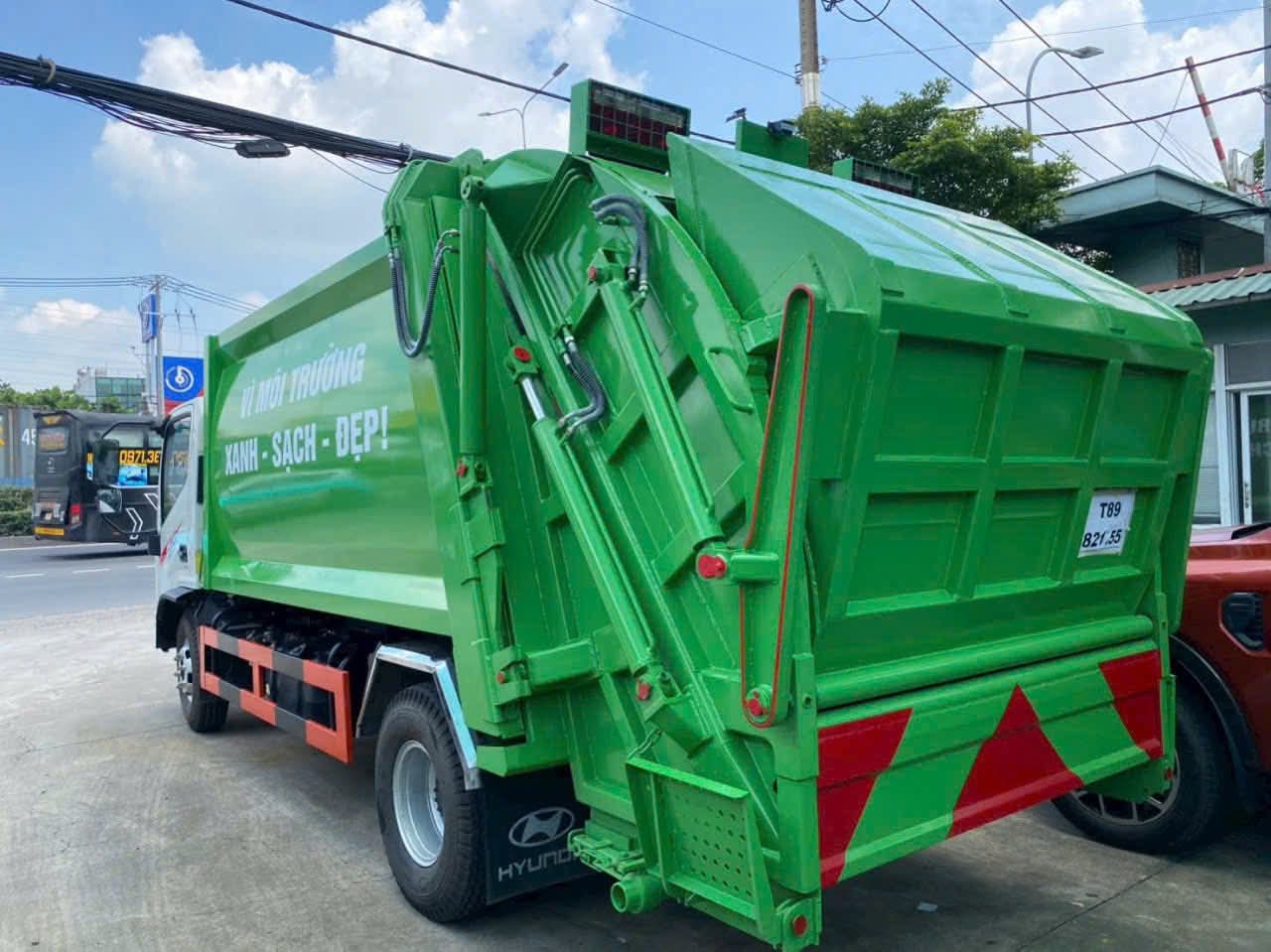

II. Technical specifications of specialized garbage compactor system mounted on vehicle
Trash can			Assembled and manufactured in Vietnam
Trash bin volume			10 ^m3
Hydraulic pump
Brand			OMFB - FOX
Origin			Import
Hydraulic distribution valve
Brand			Galtech
Origin			Import
Hydraulic divider
Brand			Galtech
Origin			Import
Garbage disposal cylinder
Origin			Assembled in Vietnam
Type			4-layer 2-way
Auxiliary cylinder system			Quantity	Technical specifications
Fork cylinder			2 pieces	-Origin: Imported Seals, Tubes, Cylinder Rods and processed according to size in Vietnam. - 1-stage cylinder type, 2-way discharge
Rear lift cylinder			2 pieces
Slide table cylinder			2 pieces
Roll blade cylinder			2 pieces
Hydraulic oil tank
Oil tank capacity			80 – 120 Liters
Accessories included			Oil sight glass: 01 piece 01 hydraulic oil return filter
Hydraulic system auxiliary equipment:			- Rigid pipe: Cast steel pipe, imported, 100% new. - Flexible pipe: 4-layer fabric type, imported, 100% new. - Oil filter, hydraulic pressure gauge, oil cap, gauge lock, oil gauge, and elbow are fully assembled, helping the vehicle operate safely and effectively. - Return oil filter: 01 100% new one.
Pump drive system
Power take-off (PTO):			- Imported synchronously with the base vehicle, 100% new - Extract power from the vehicle engine, the power take-off unit next to the gearbox is compatible with the gearbox bearing, Pump drive through the cardan shaft, hydraulic pump drive
Control system
Open and close PTO and hydraulic pump:			Mechanical
Hydraulic pressure test:			Hydraulic gauge mounted on the 2 rear door valves of the cabin
Control of the garbage compactor mechanism:			Mechanical, hand-operated
Garbage discharge mechanism control:			Mechanical, hand-operated
Garbage loading control:			Mechanical, hand-operated
Sub-details
Hip insurance:			02 side protection bumpers made of steel pipe or steel box
Mudguard:			Material: INOX 201
Footrest and handrails are arranged on both sides behind the press tank:			On request, not included in the vehicle design documents
Tool box:			On request, not included in the vehicle design documents
Hand sanitizer bottle:			On request, not included in the vehicle design documents
