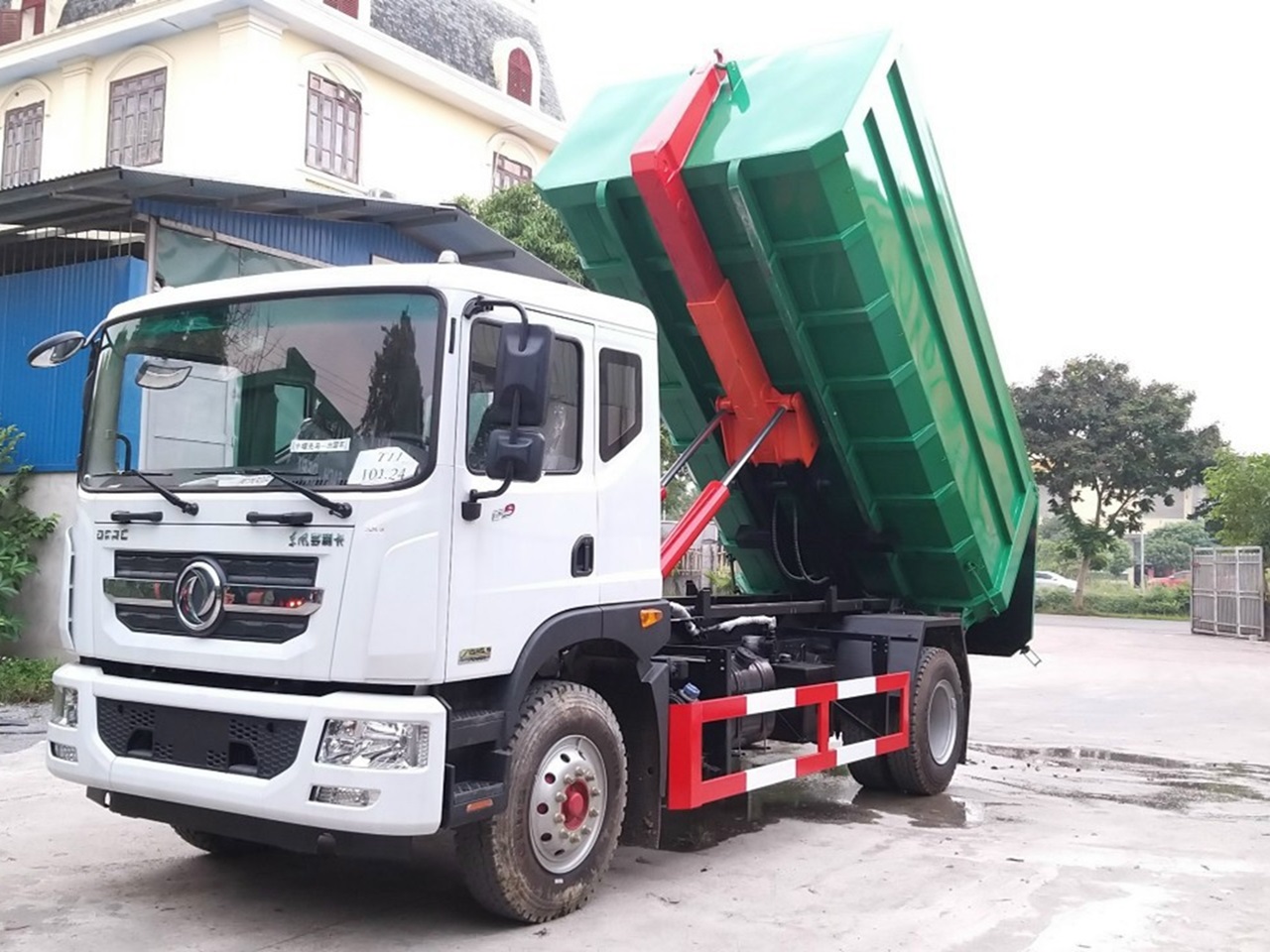

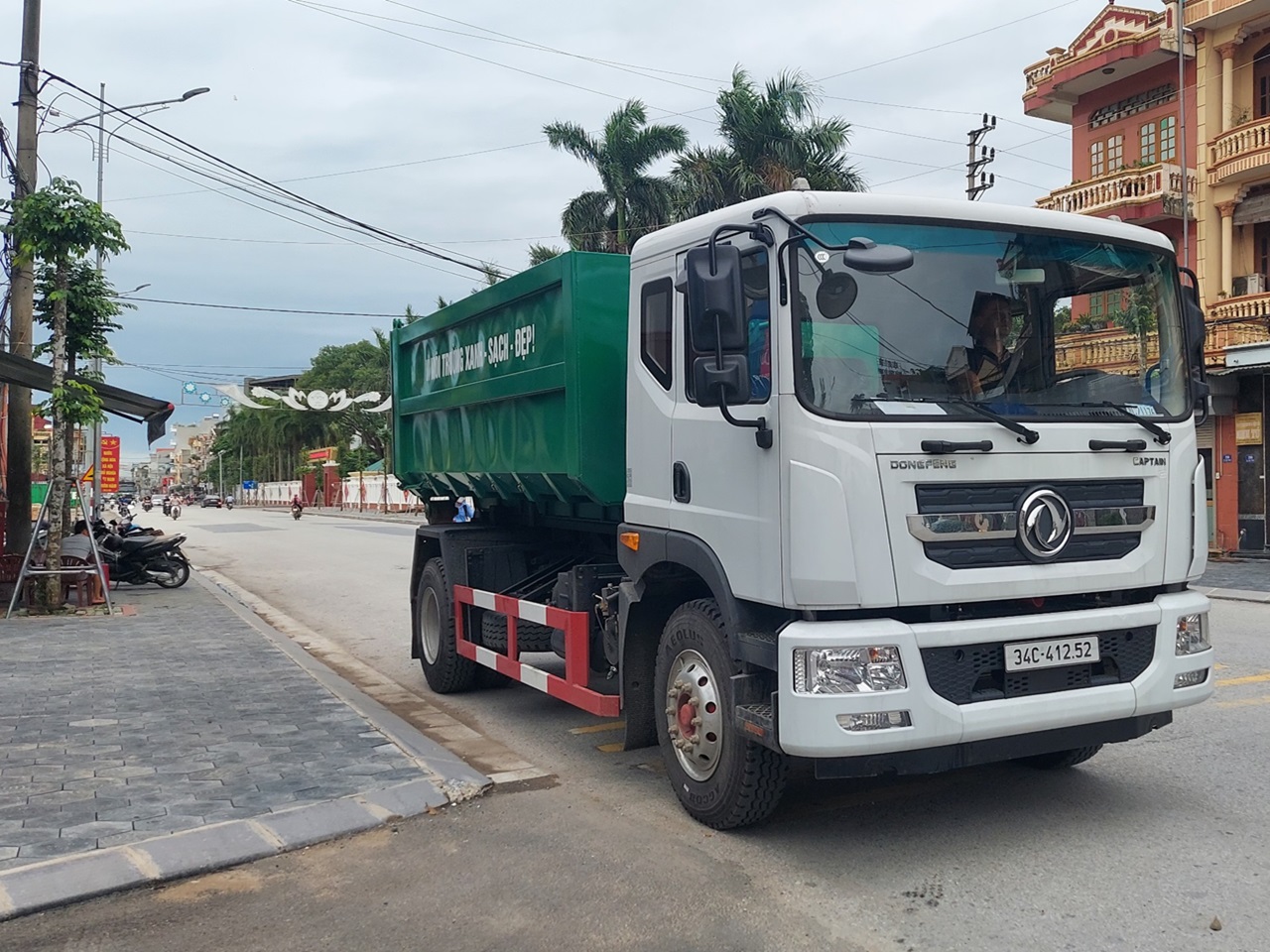

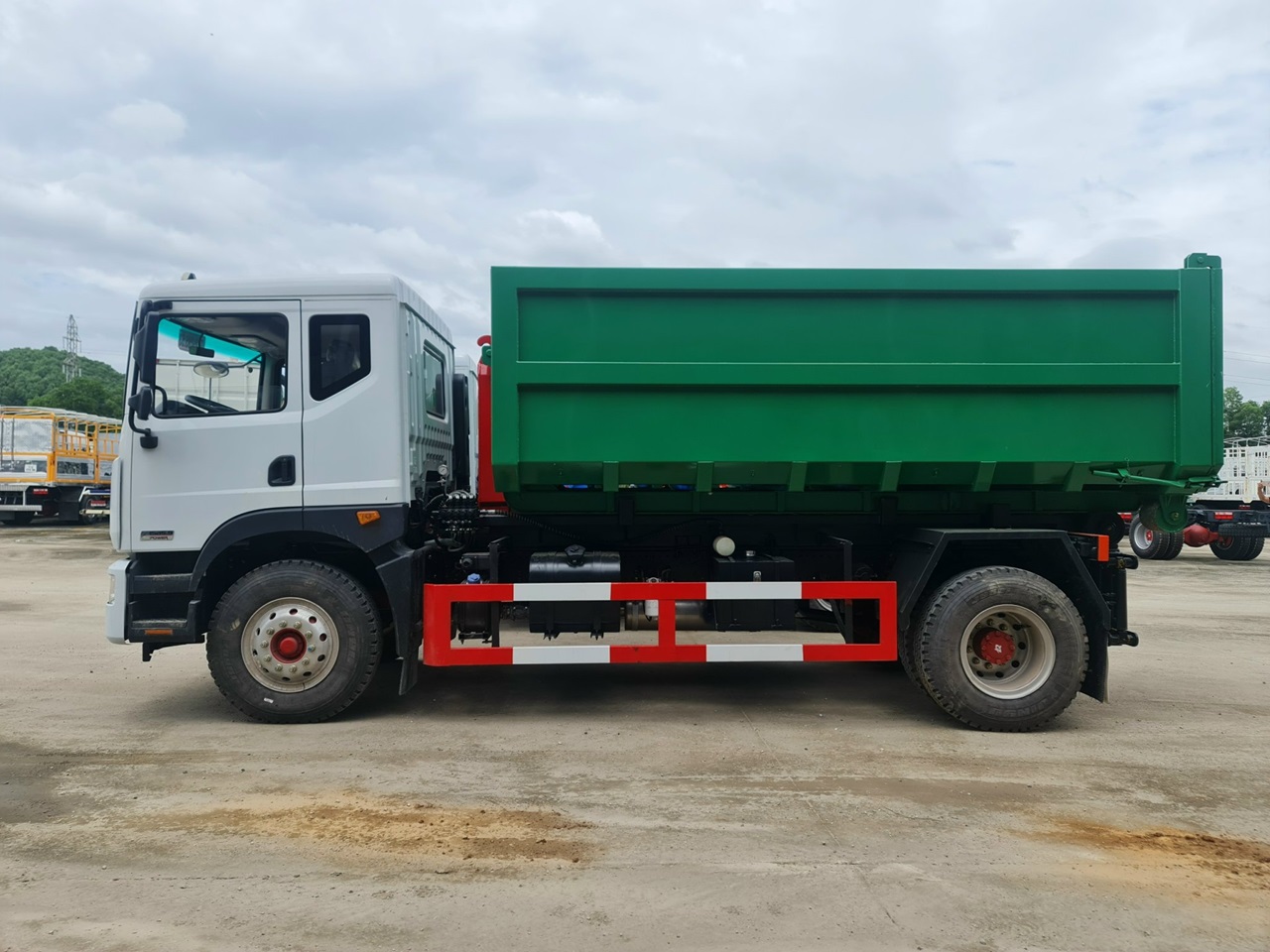

Dongfeng 14m³ Detachable Garbage Truck

Product code: CR-DONGFENG-14K
Group: Garbage truck
Style: Garbage truck
Gross Vehicle Weight Rating: 15750 kg
Wheel construction formula: 4x2 (2 axles, 1 driven axle)
Manufacturer: Dongfeng
Payload range: From 3.5 tons to under 8 tons
Price range: From 1 billion to under 1.5 billion VND

Details of Dongfeng 14m³ Detachable Garbage Truck

Introduction

The Dongfeng 14m³ detachable garbage truck is one of the high-quality products in the environmental service vehicle sector. Designed with advanced technology and flexible detachable container system, the product ensures high efficiency in waste collection and transportation.

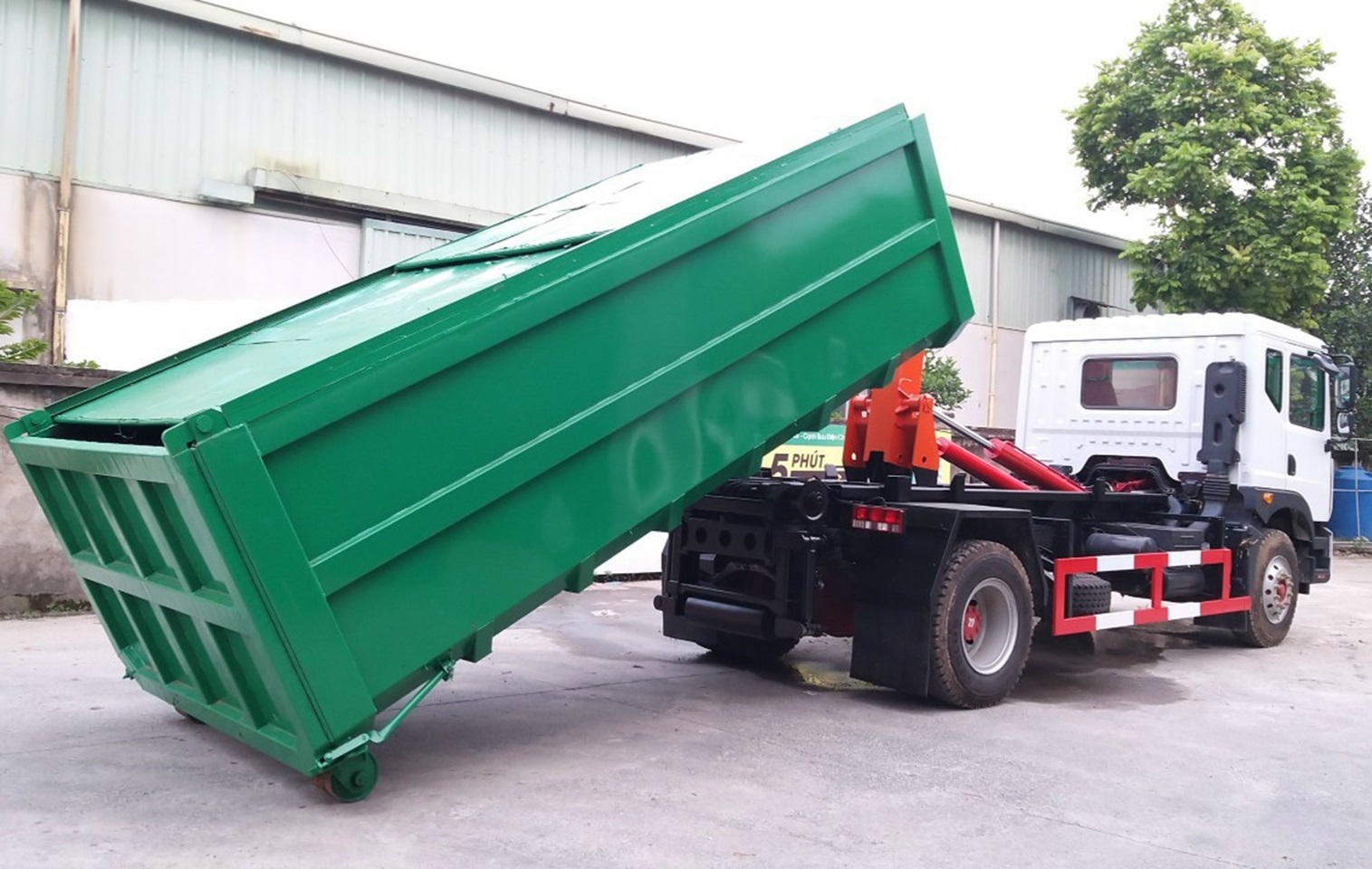

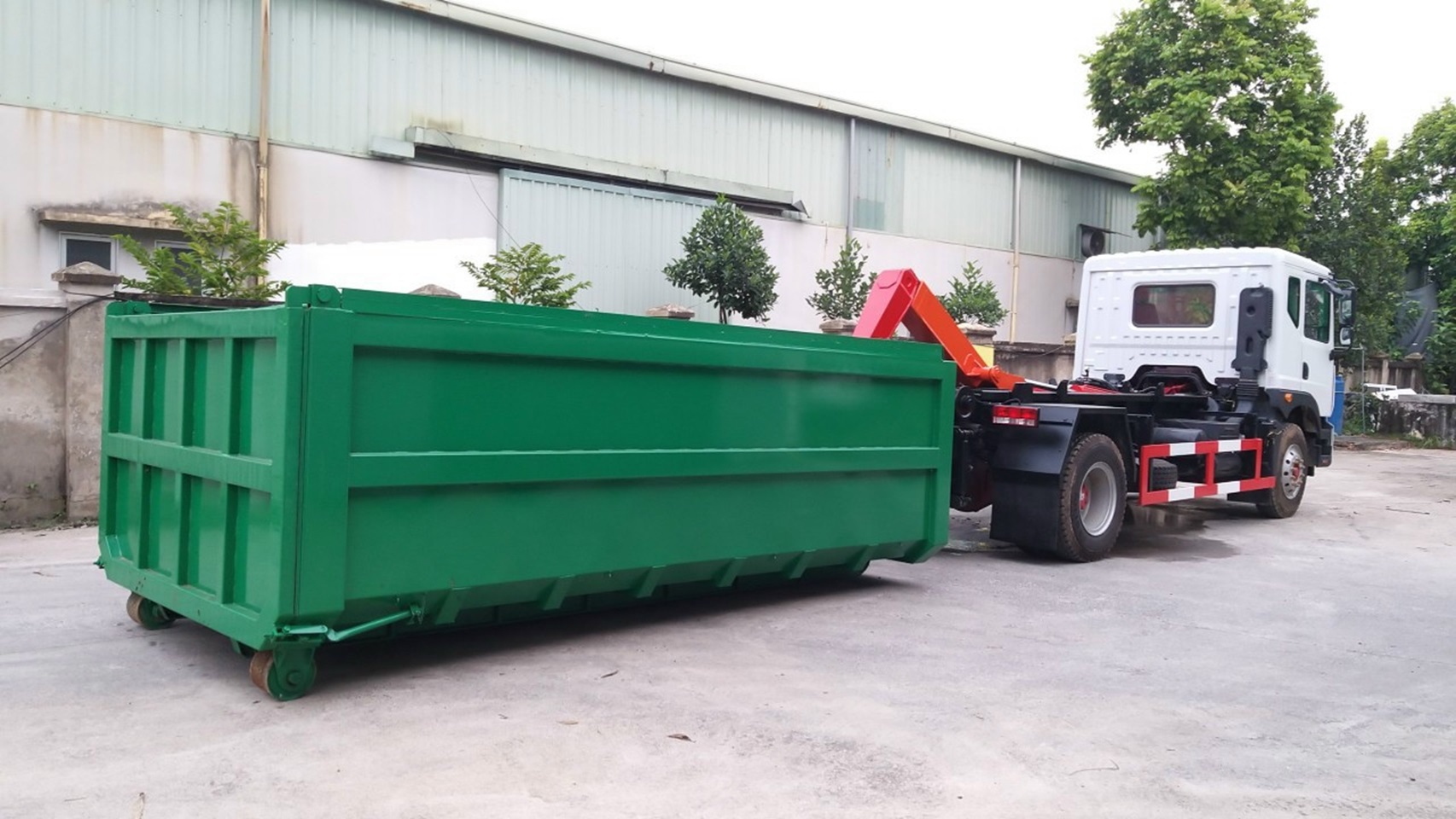

With the ability to easily lift and lower containers, the detachable garbage truck helps optimize waste collection processes, saving time and manpower. The product is suitable for all weather conditions and different terrains.

Outstanding Advantages:

Modern design, advanced technology
High operational efficiency, fuel-saving
High durability, low breakdown rate
Easy maintenance and repair
Environmentally friendly
Powerful hydraulic lifting system
Flexible detachable container

Applications:

This product is widely used by environmental companies, government agencies, industrial zones, and waste collection units. It is suitable for all weather conditions and various terrains.

Detailed Technical Specifications:

Below are the complete technical specifications and detailed information of the product:

DETAILED TECHNICAL SPECIFICATIONS TABLE

1. About the car
Vehicle type			Garbage truck
Brand number type			DONGFENG - YZZ5180GSSES
Emission standards			EURO 5
Origin			Vietnam
Base vehicle assembly year			2024
Year of manufacture of garbage truck			2025
Quality			100% new
Color			White
Wheel formula			4x2
Number of people allowed to carry			03 people
2. Weight
Total load			~ 15,750		Kg
Self-respect			~ 9,805		Kg
Load			~ 5,750		Kg
3. Size
Wheelbase			4500		mm
Outer dimensions (LxWxH)			~ 8310 x 2480 x 3220		mm
Box size			~ 3180/3100 x 2300 x 1960		mm
4. Engine
Model			YC6JA180-50
Type			- cylinder in-line, TURBO-turbocharged , water -cooled Diesel engine .
Maximum power			132/2500	(Kw/rpm)
Maximum torque			706/1450 (Nm/rpm)
Cylinder diameter x piston stroke			120 x 130		mm
Cylinder capacity			6870		cc
Compression ratio			18:1
Fuel supply system			Electronically controlled fuel injection
5. Clutch		Type	Single disc dry friction spring type, hydraulic drive , pneumatic assist
6. Gearbox		Gearbox type
		Type	2-speed gearbox, 9 forward gears and 1 reverse gear
7. Steering system			Screw - ball nut, hydraulic power steering
8. Brake system	Main brake system		Drum type, 2-line hydraulic drive , vacuum assist.
	Parking brake		Drum type, acting on the secondary shaft of the gearbox.
	Exhaust brake		Have
9. Tire size			10.00 R20
10. Cabin			Tilting cabin with torsion bar mechanism including rear rubber shock absorbers
11. Suspension system
Front axle suspension			Dependent type with semi-elliptical leaf springs, hydraulic shock absorbers
Rear axle suspension			Dependent type with 2-stage semi-elliptical leaf springs, hydraulic shock absorbers
12. Characteristics
Climbing ability			30		%
Maximum speed			100		km/h
Fuel tank capacity			130		Liter
Electrical system			24V, 60Ah x 2
Standard equipment			Air conditioning, power windows, central locking, CD&AM/FM radio

Additional Information:

The Dongfeng 14m³ detachable garbage truck is equipped with modern features and advanced safety systems. The product meets all international standards for environment and occupational safety.
