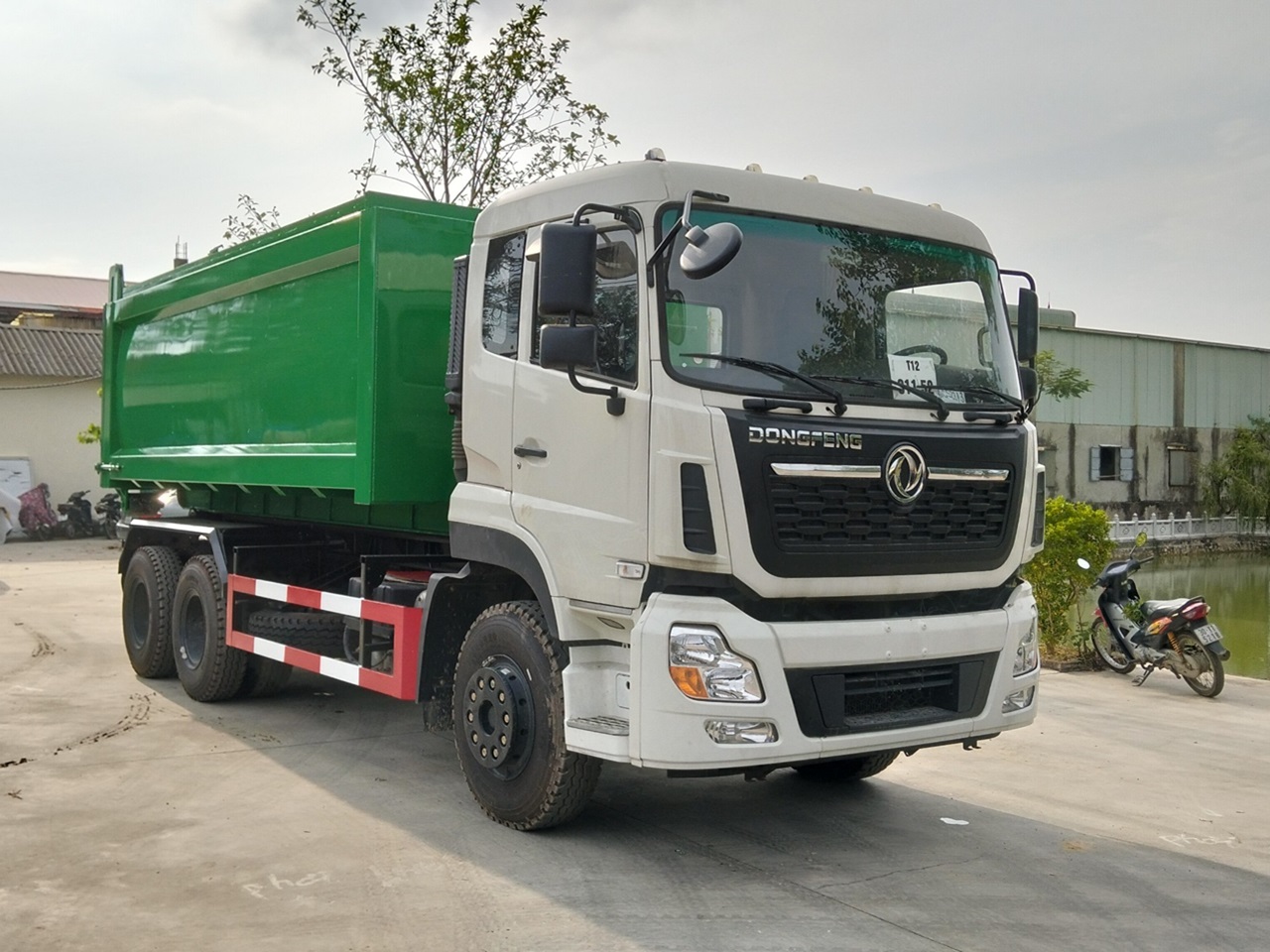

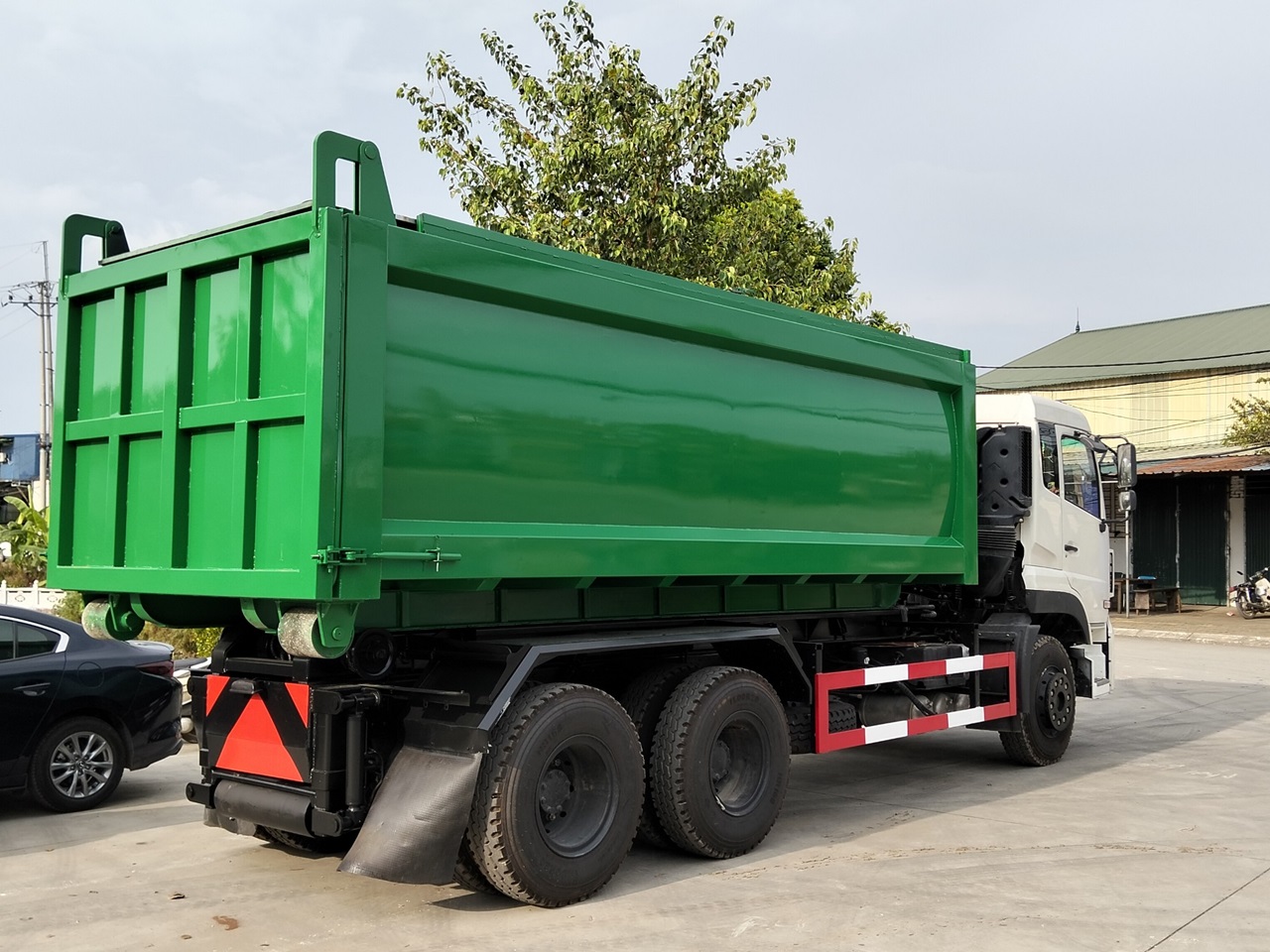

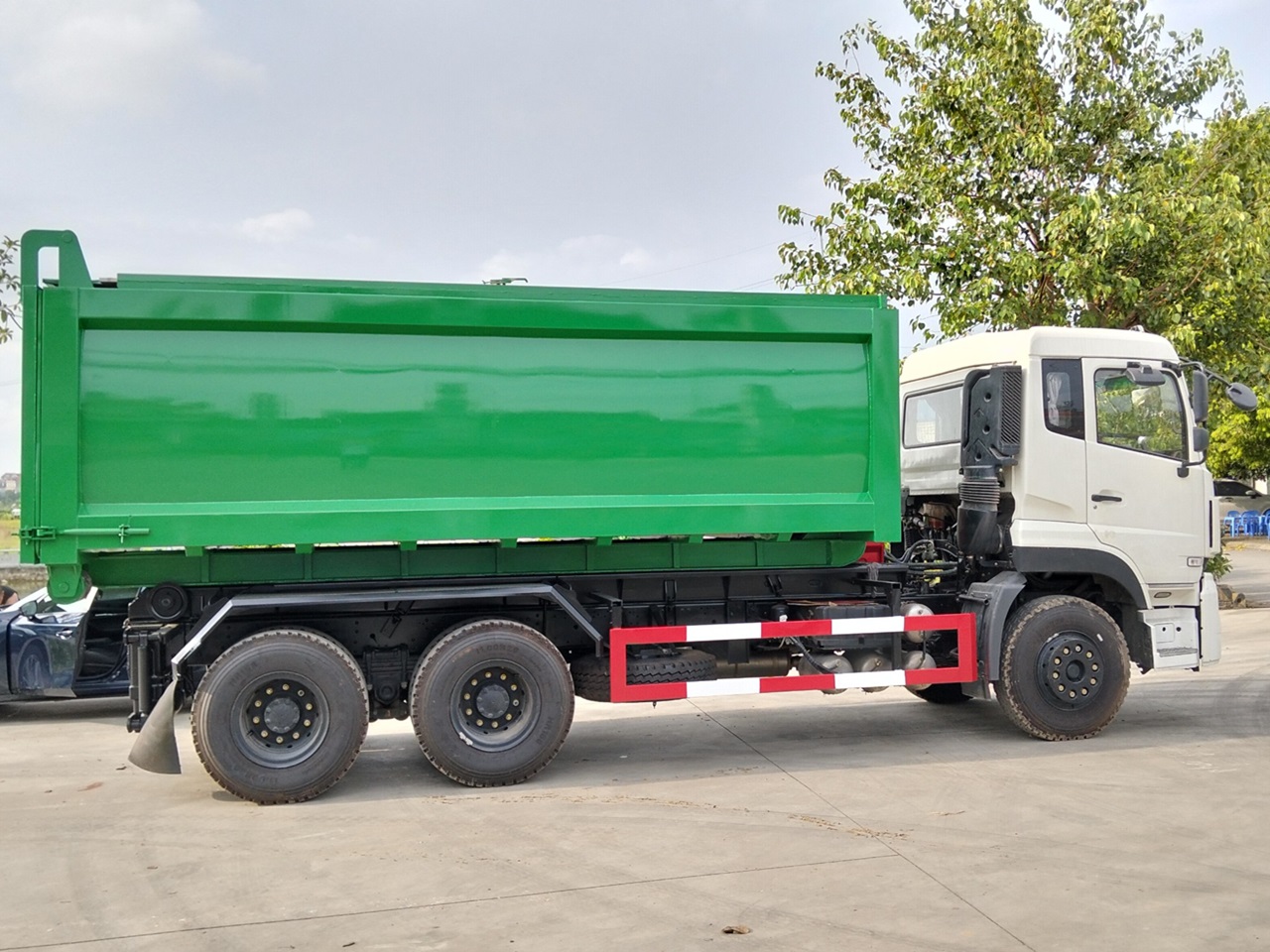

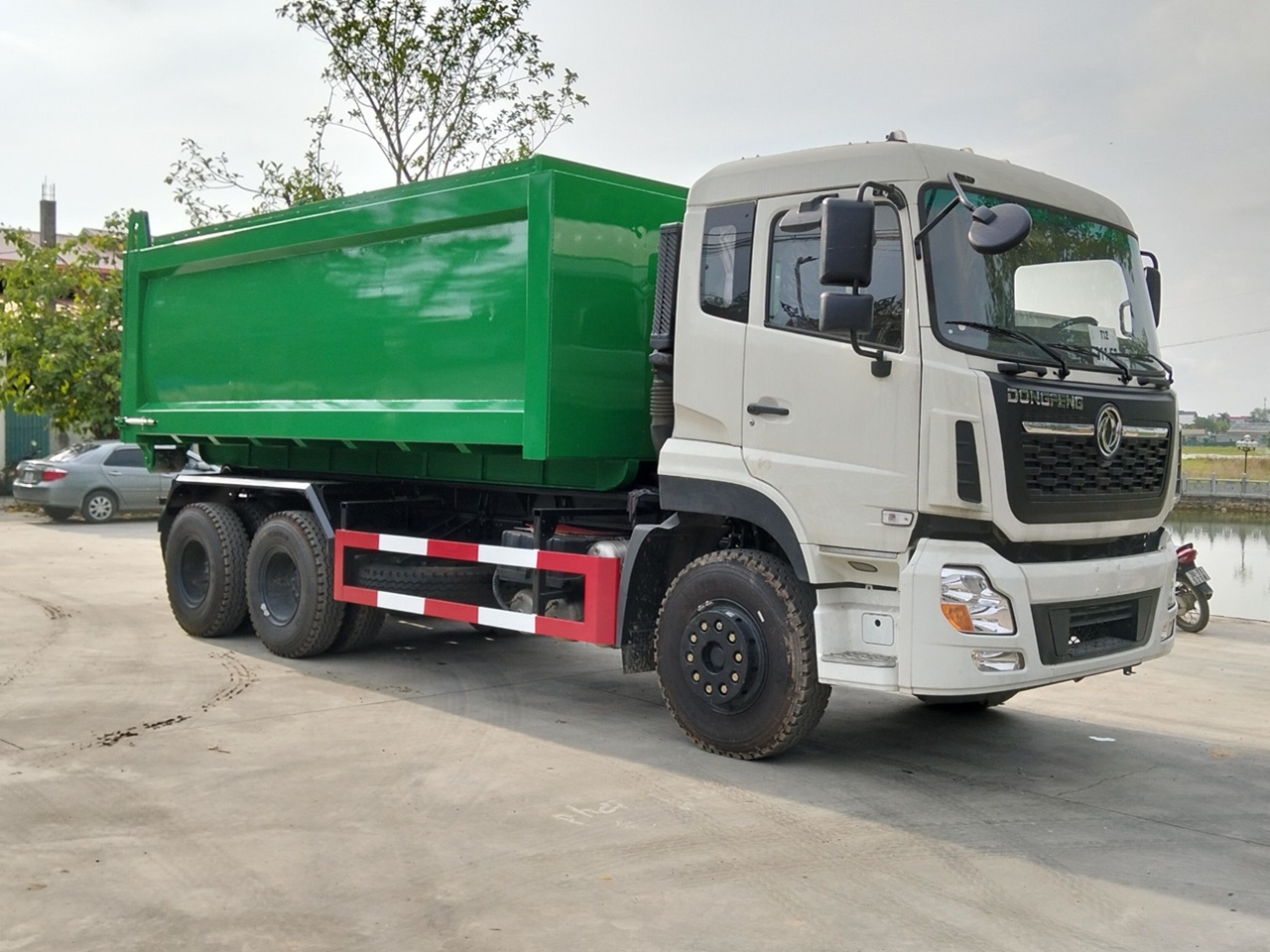

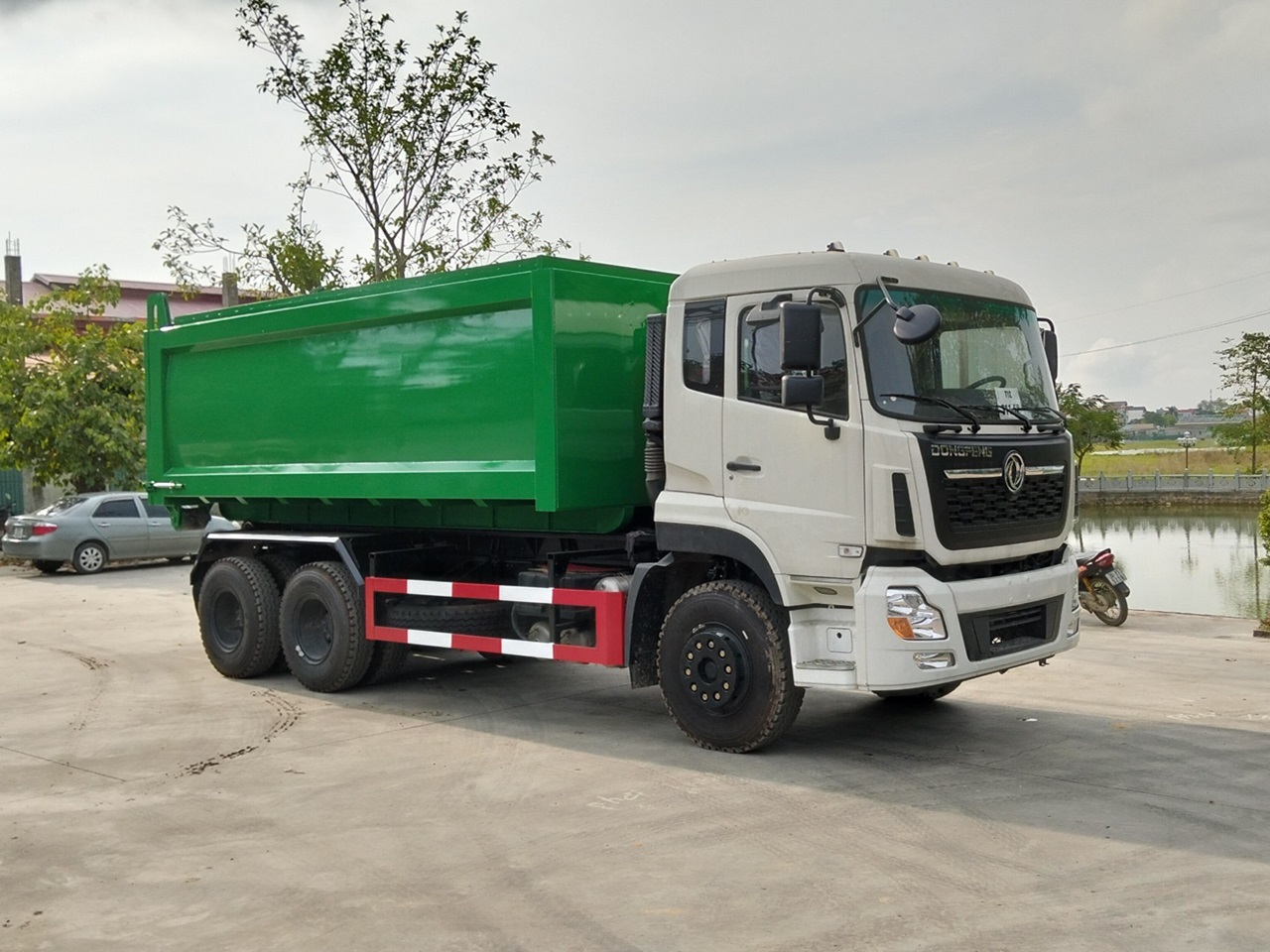

Dongfeng garbage truck with a capacity of 22 cubic meters

Product code: CR-DONGFENG-22K
Group: Garbage truck
Style: Garbage truck
Gross Vehicle Weight Rating: 24000 kg
Wheel construction formula: 6x2 (3 axles, 1 driven axle)
Manufacturer: Dongfeng
Payload range: From 8 tons and up
Price range: From 2 billion to under 3 billion VND

Details of Dongfeng garbage truck with a capacity of 22 cubic meters

Introduction

The Dongfeng 22m³ detachable garbage truck is a premium product in the large-capacity detachable garbage truck line. Designed with advanced technology and flexible detachable container system, the product ensures high efficiency in large-scale waste collection and transportation.

With the ability to easily lift and lower 22m³ containers, the detachable garbage truck helps optimize waste collection processes, saving time and manpower. The product is suitable for large projects and industrial zones.

Detailed Technical Specifications:

Below are the complete technical specifications and detailed information of the product:

TT	LIST OF GOODS
General vehicle specifications Product name
		Garbage truck
-	Model	YZZ5250GPSEZ
-	Origin of the base vehicle	Imported from China
-	Year of manufacture	2025
-	Trash bin capacity	~ 22 m3
-	Bag size (mm)	~ 8820 x 2500 x 3570 (mm)
-	Carton size (mm)	~ 6190 x 2500 x 2300 (mm)
-	Carton size (mm)	~ 5710 x 2290/1850 x 1585/1500 (mm)
-	Allowable load (kg)	~ 10,500 (kg)
-	Total design weight (kg)	~ 24,000 (kg)
-	Body weight (kg)	~ 13,570 (kg)
-	Quality	100% new
-	Paint	White
Detailed specifications
1	Chassis
-	Wheel formula	6×4
	Gear ratio	5,571
-	Wheelbase (mm)	4350 + 1300
-	Front/rear wheel track (mm)	1940/1860 (mm)
2	Cabin
-	Type	Standard cabin with bed
-	Number of doors	02
-	Number of seats	02
-	Air conditioner	Air-conditioned
-	Driver's seat	Air cushion seat for driver comfort
-	Bed	There is 01 bed
-	Window up and down control	Electric control
-	Interior and accessories	Power steering, radio - cassette, 01 spare tire, standard manufacturer's tools
3	Engine
-	Model	YC6A270-50 (YUCHAI Euro 5 standard)
-	Engine type	Diesel 4-stroke, 6-cylinder in-line, water-cooled, turbocharged
-	Maximum power (Kw/rpm)	199 kw (270 HP)/2300 (rpm)
-	Cylinder diameter and piston stroke (mm)	108 × 125
-	Cylinder capacity (cm3)	7520
-	Compression ratio	17.5:1
-	Gear	FAST (Austrian joint venture) 10JSD160TB, 2-speed gearbox, 10 forward gears + 02 reverse gears, with synchronizer for easy and smooth gear shifting.
4	Power transmission system
-	Clutch	Dry friction disc type, hydraulic drive, pneumatic power assist
-	Maximum speed	100 km/h
-	The largest slope the vehicle can overcome	34.89%
5	Suspension system
-	Front axle	Dependent, leaf spring, hydraulic shock absorber
-	Rear axle	Dependent, leaf spring
-	Tire size	11.00R20 steel wire tire
6	Steering system
-	Steering mechanism type	Ball screw
-	Drive	Mechanical with hydraulic assist
-	Steering column	Tilt and height adjustable steering column
7	Brake system
-	Main brake	Pneumatically driven drum brake with ABS brake force control system
-	Parking brake	Acting on axle 2-3 wheels, self-locking drive type
8	Other systems
-	Fuel type	Diesel
-	Fuel tank (liters)	300
-	Power windows	Have
-	Central door locking	Have
-	CD, AM/FM Radio	Have
-	Electrical system	24v
-	Battery	2 batteries - 12V - 150A
