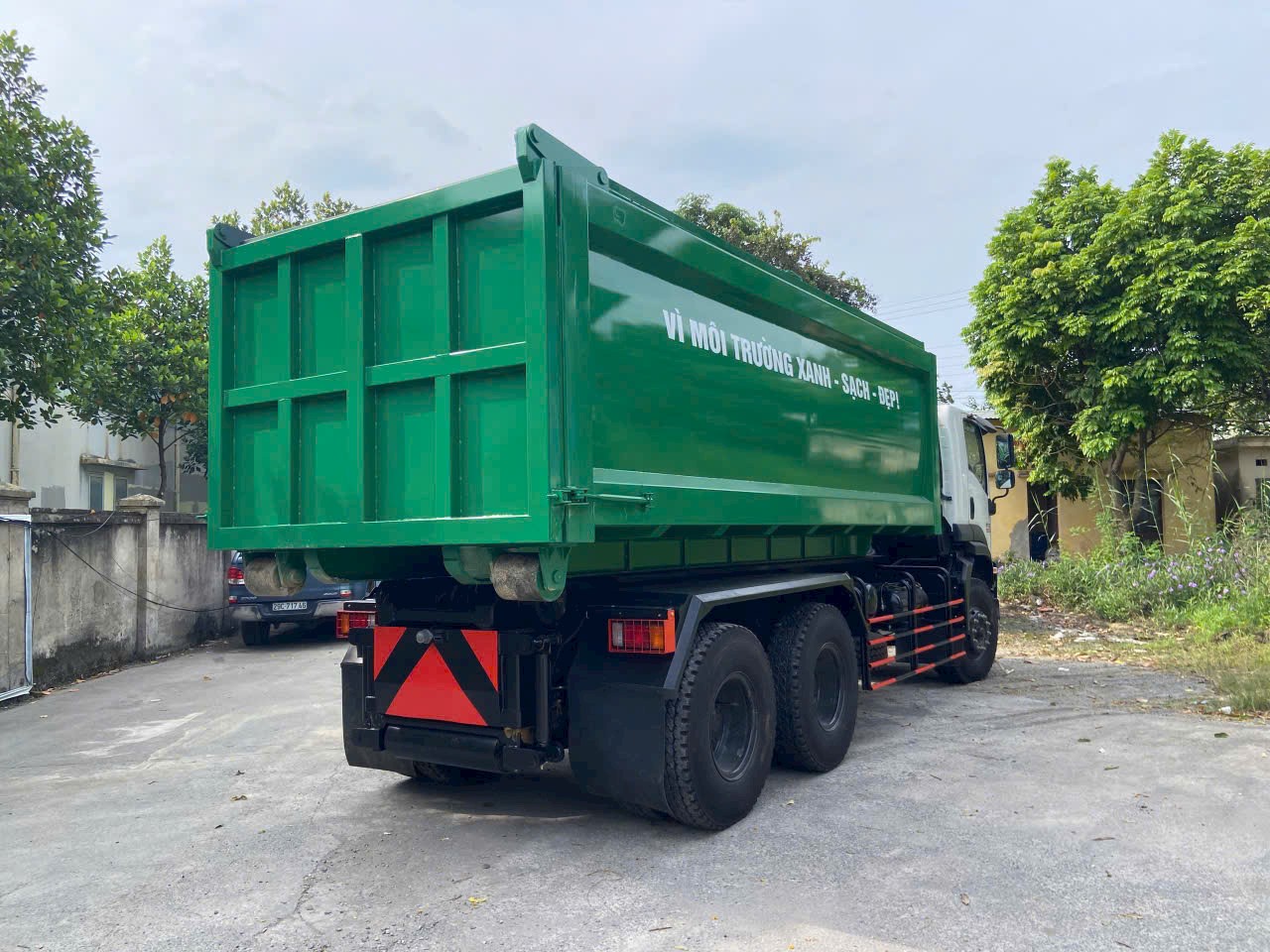

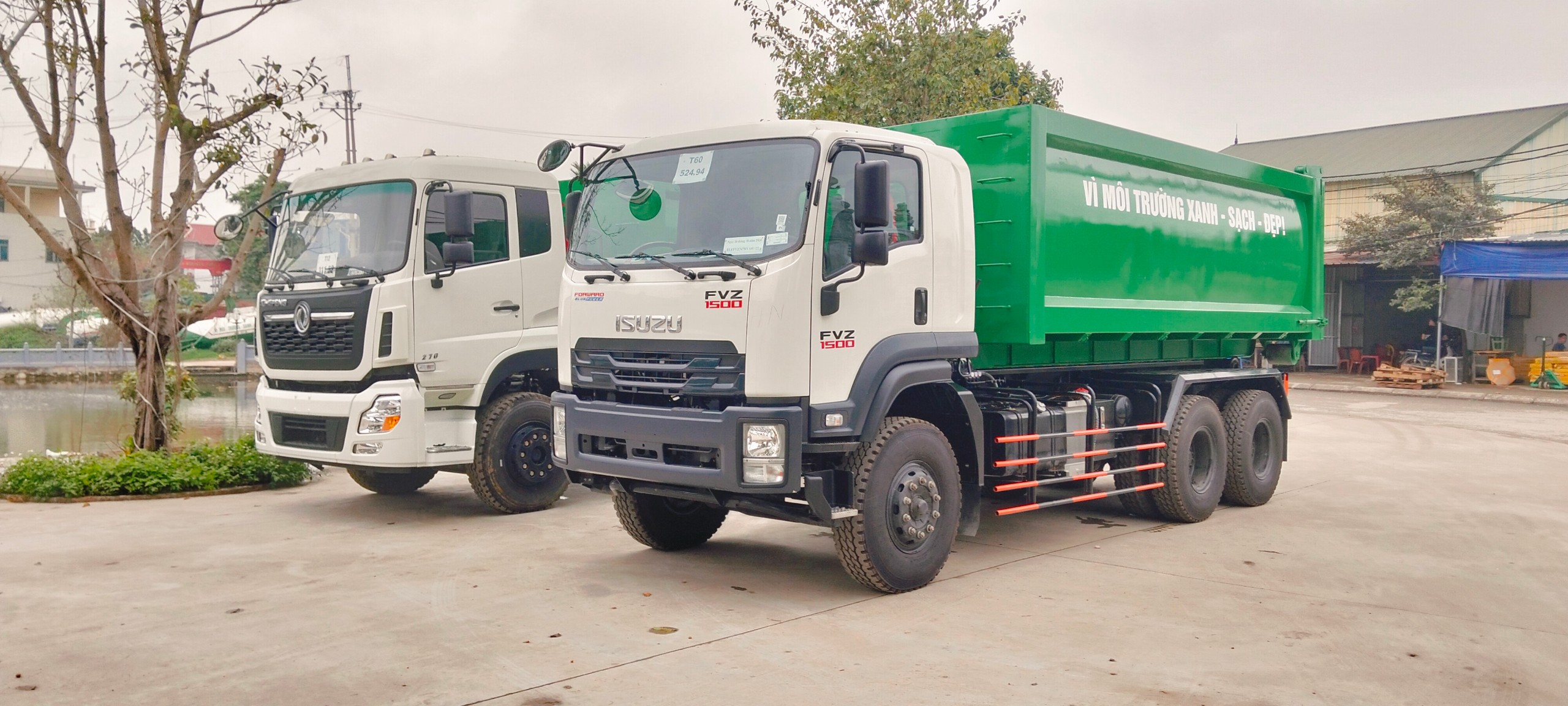

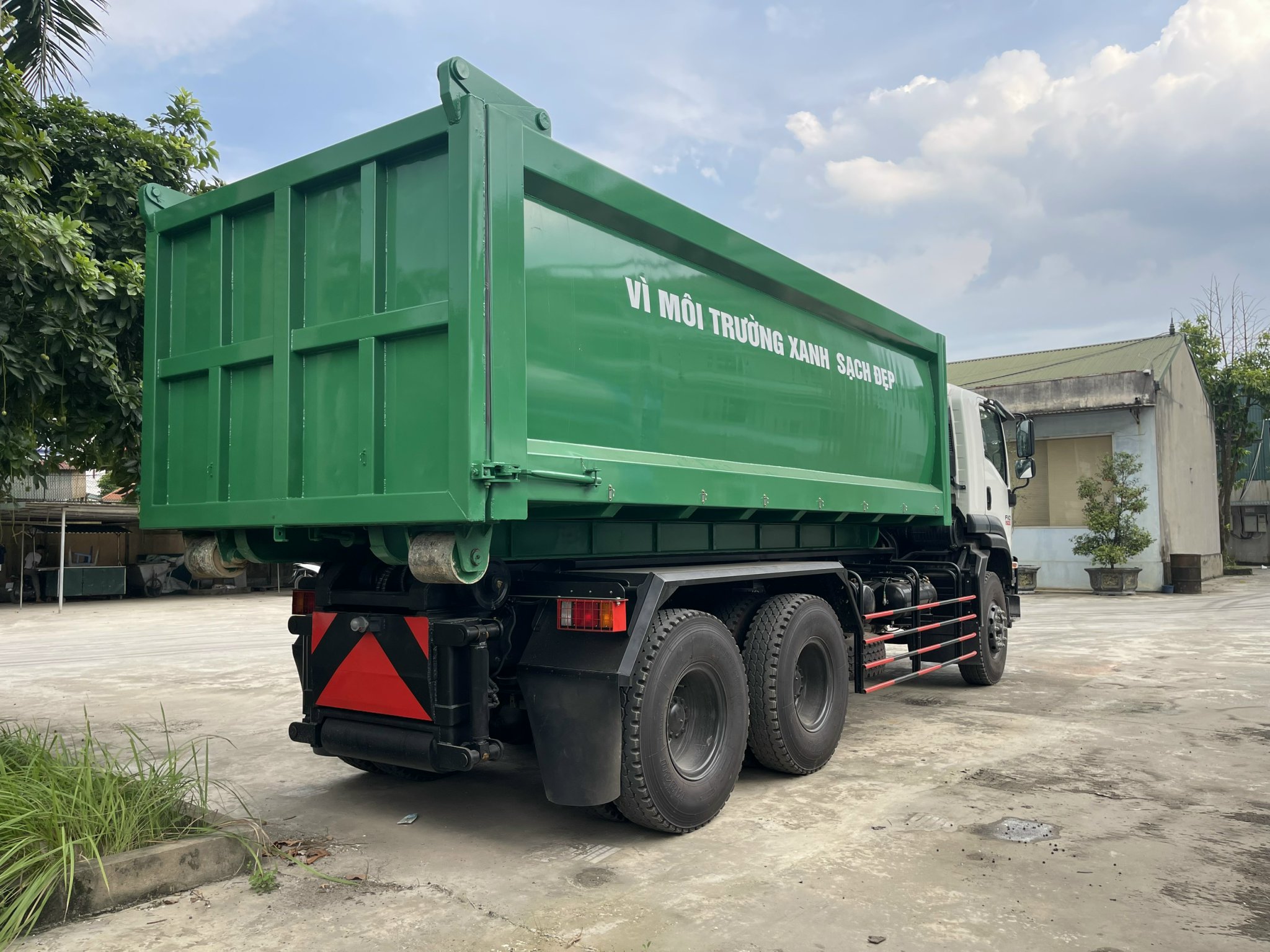

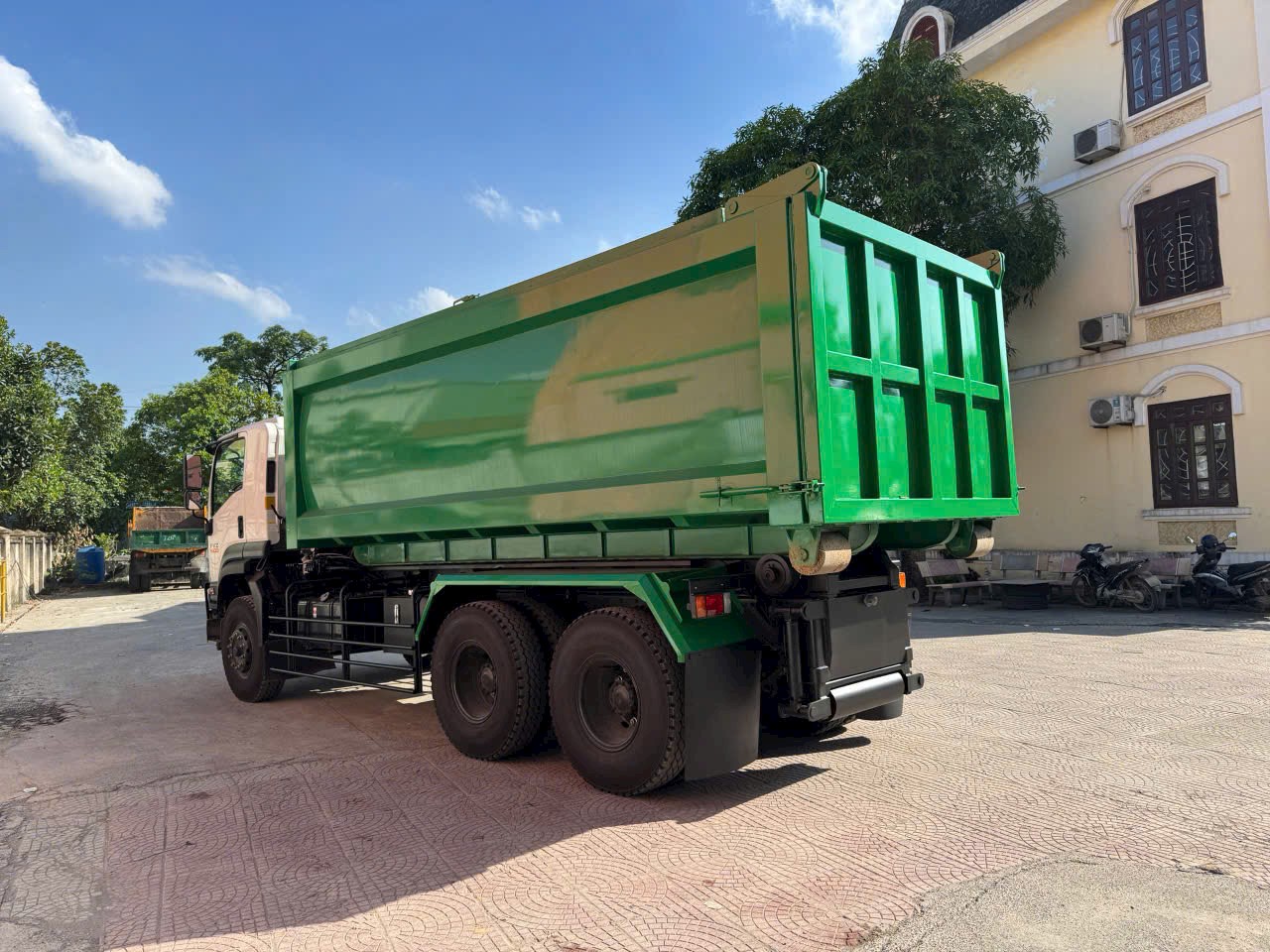

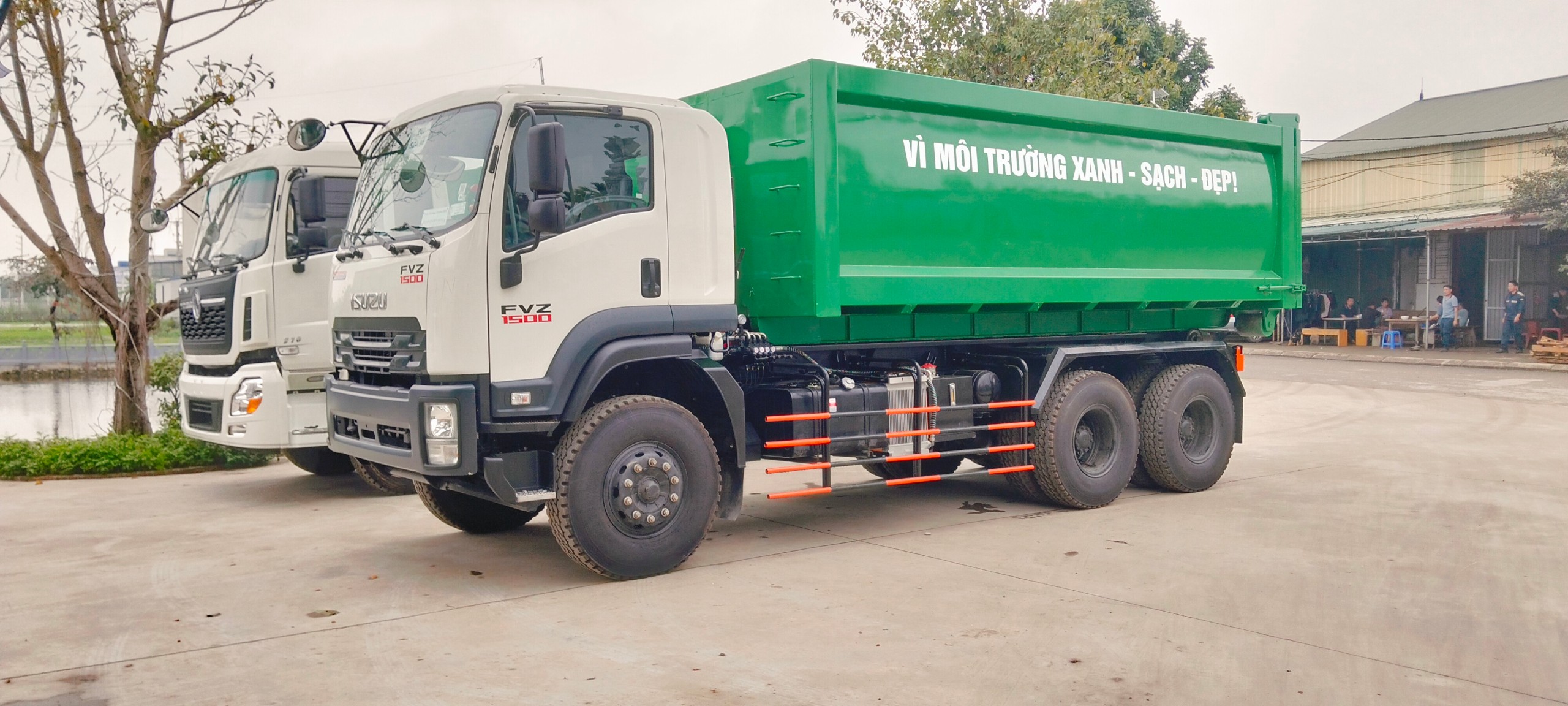

ISUZU 10-ton garbage truck with a 22-cubic-meter container

Product code: CR-ISUZU-22K
Group: Garbage truck
Style: Garbage truck
Gross Vehicle Weight Rating: 24000 kg
Wheel construction formula: 6x2 (3 axles, 1 driven axle)
Manufacturer: Isuzu
Payload range: From 8 tons and up
Price range: From 2 billion to under 3 billion VND

Details of ISUZU 10-ton garbage truck with a 22-cubic-meter container

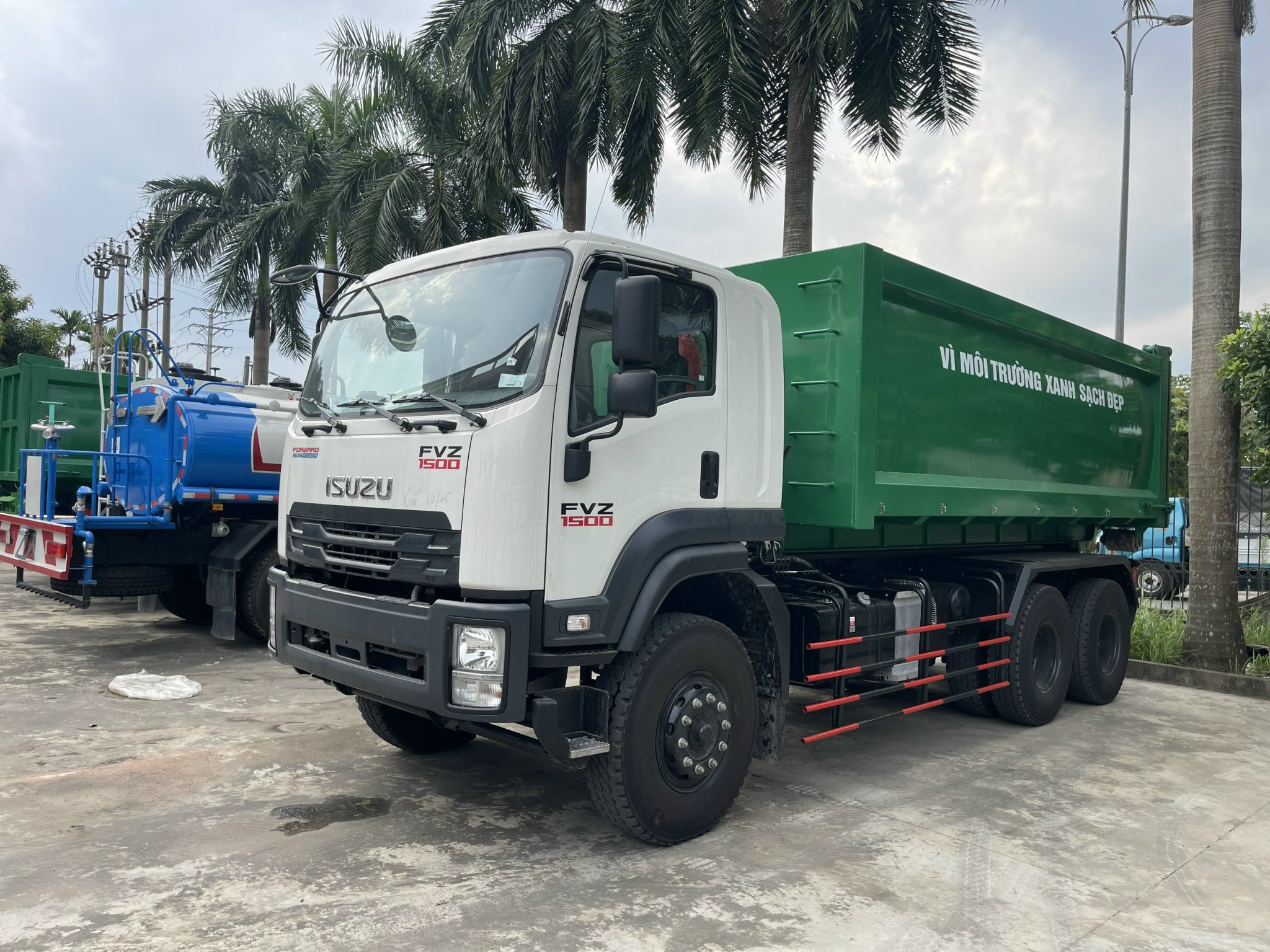

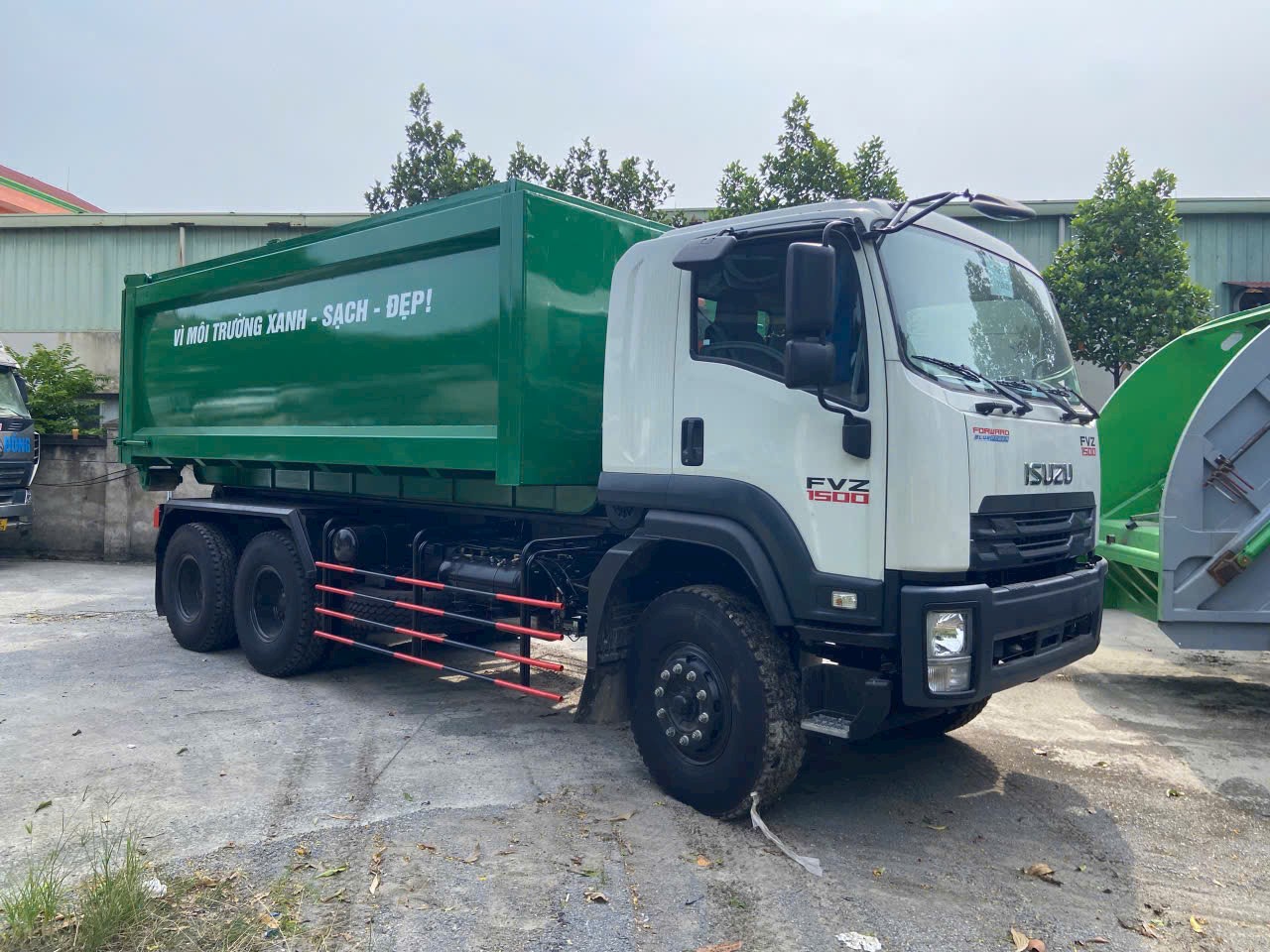

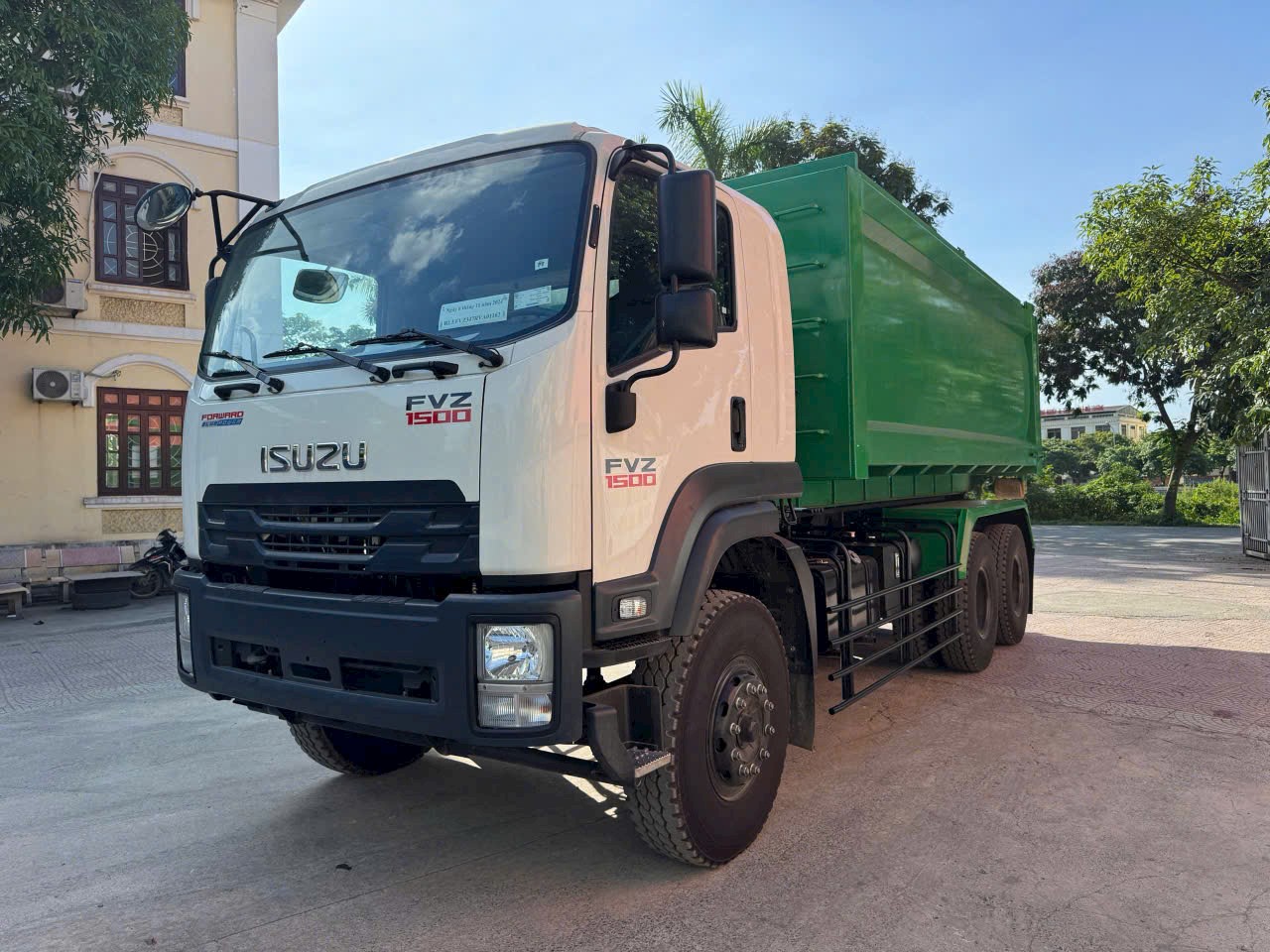

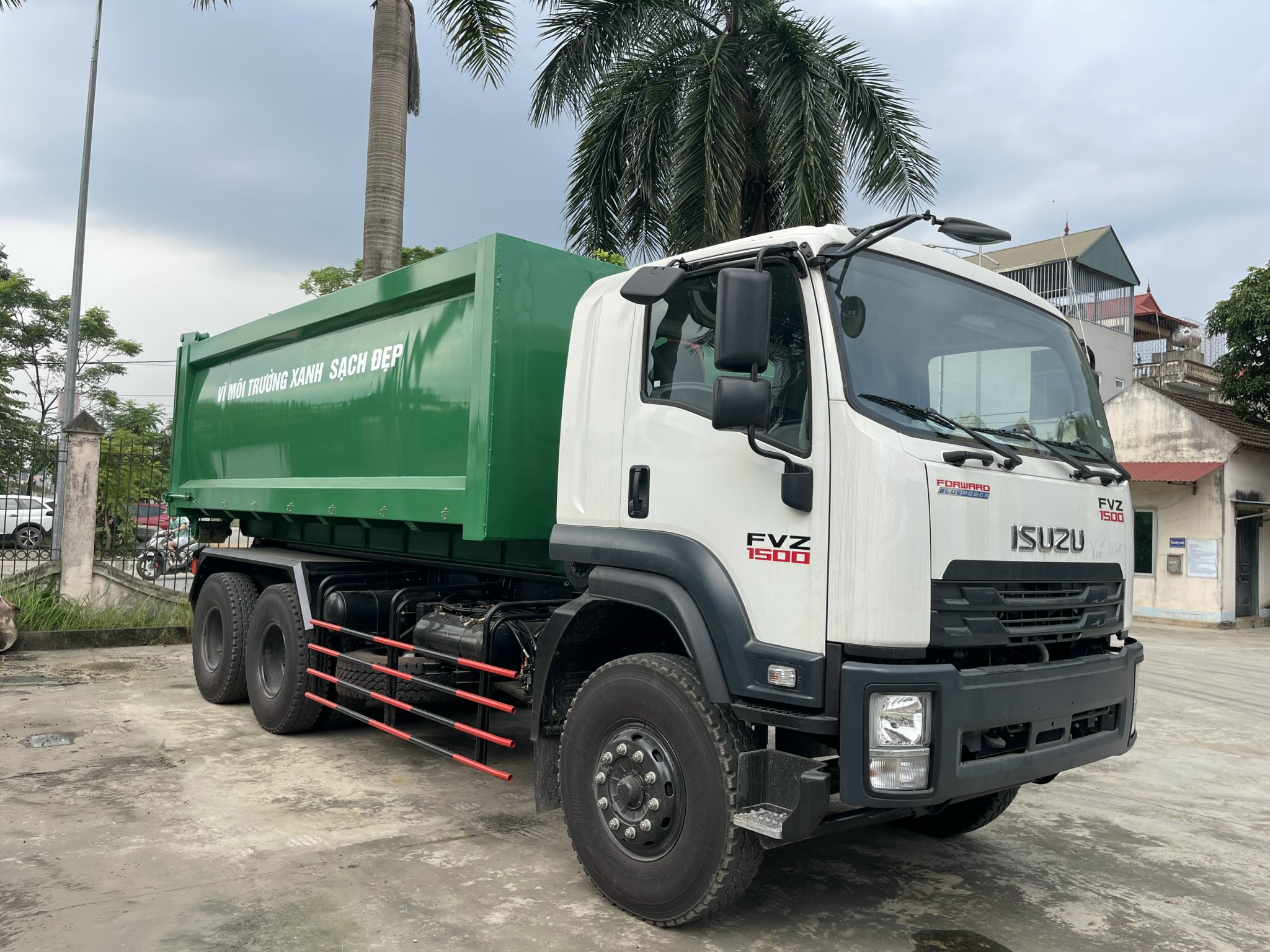

Introduction: ISUZU 10-ton garbage truck with a 22-cubic-meter container

The Isuzu 22m³ detachable garbage truck is a premium product in the large-capacity detachable garbage truck line. Designed with advanced technology and flexible detachable container system, the product ensures high efficiency in large-scale waste collection and transportation.

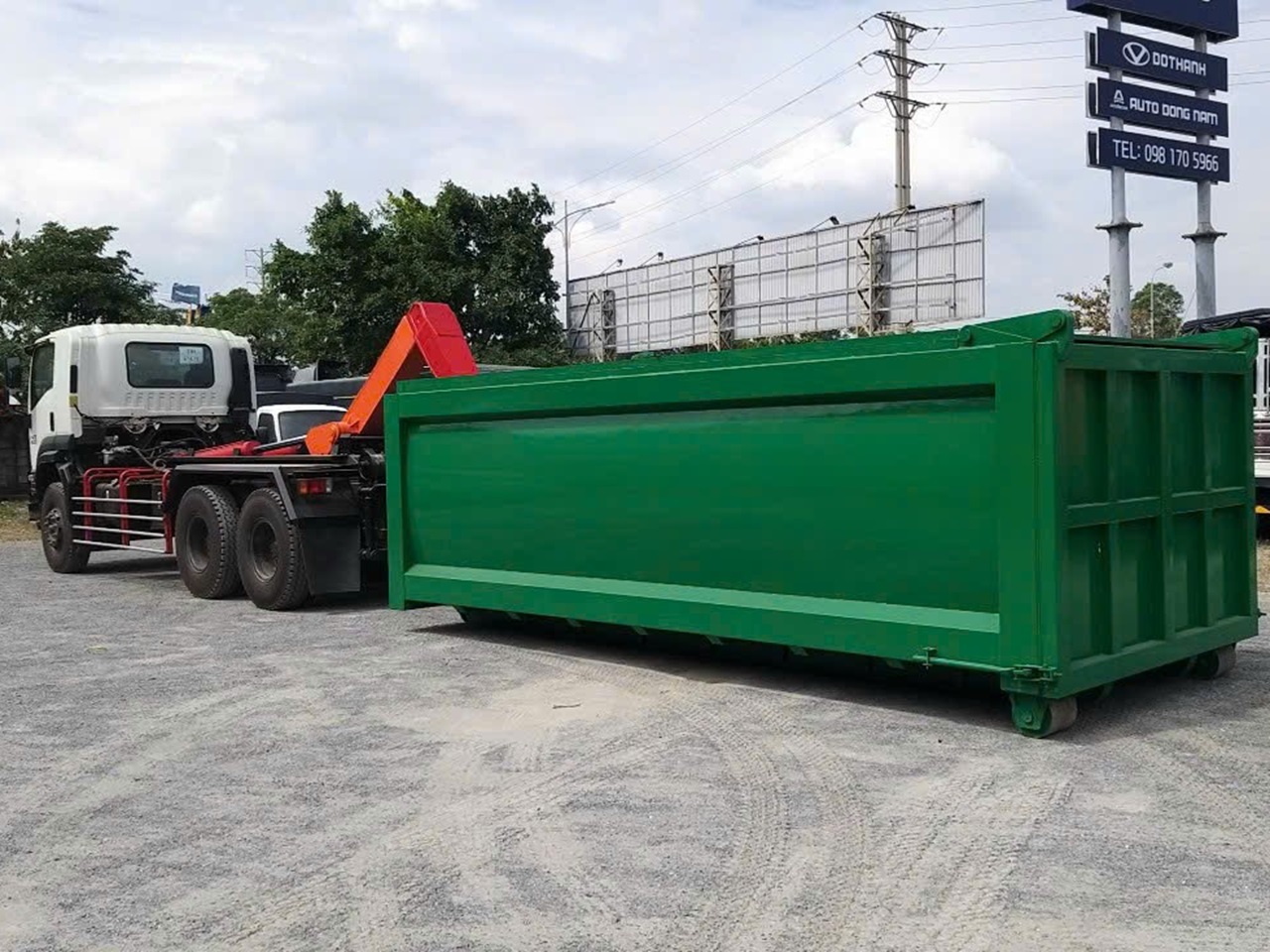

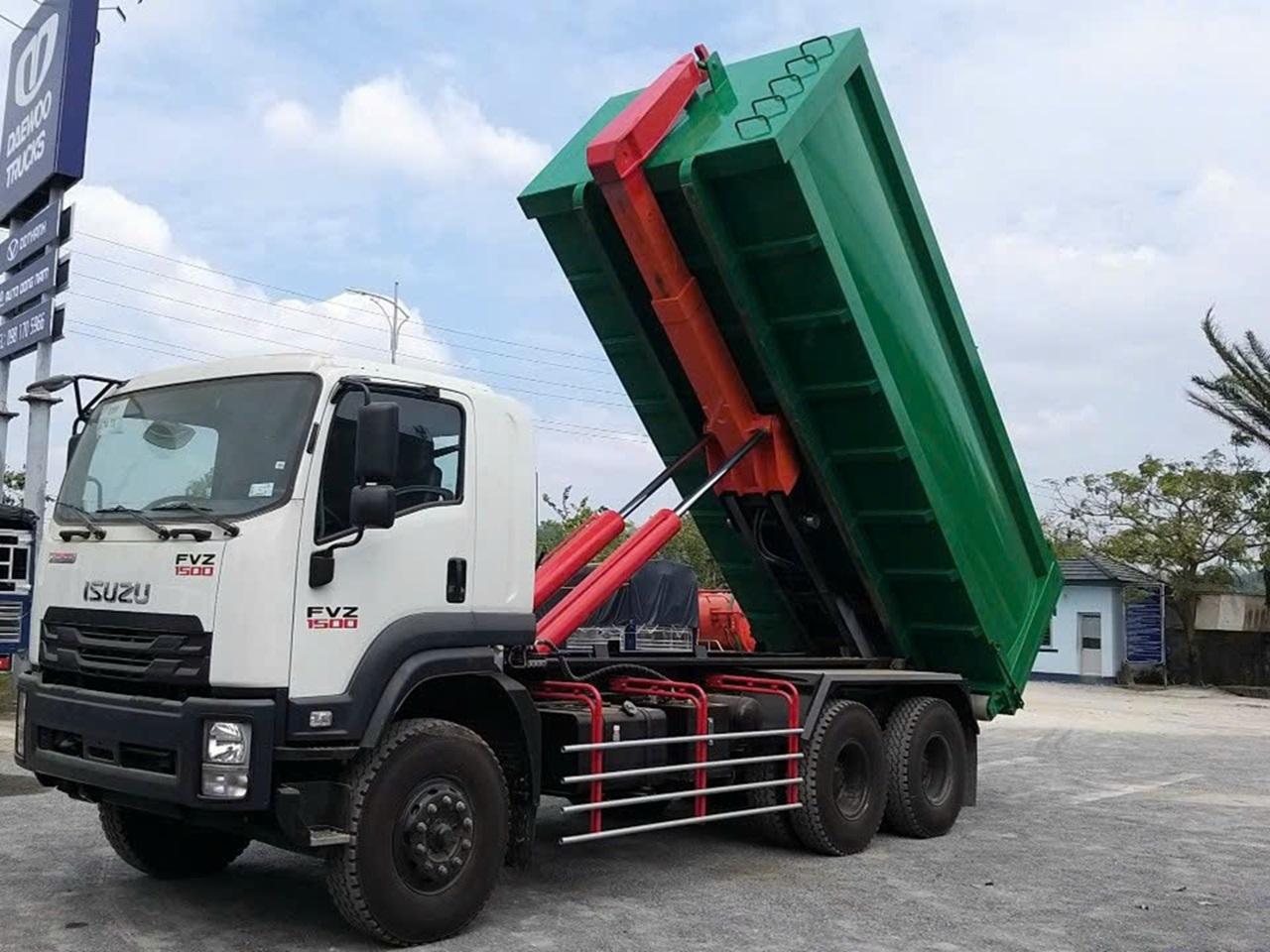

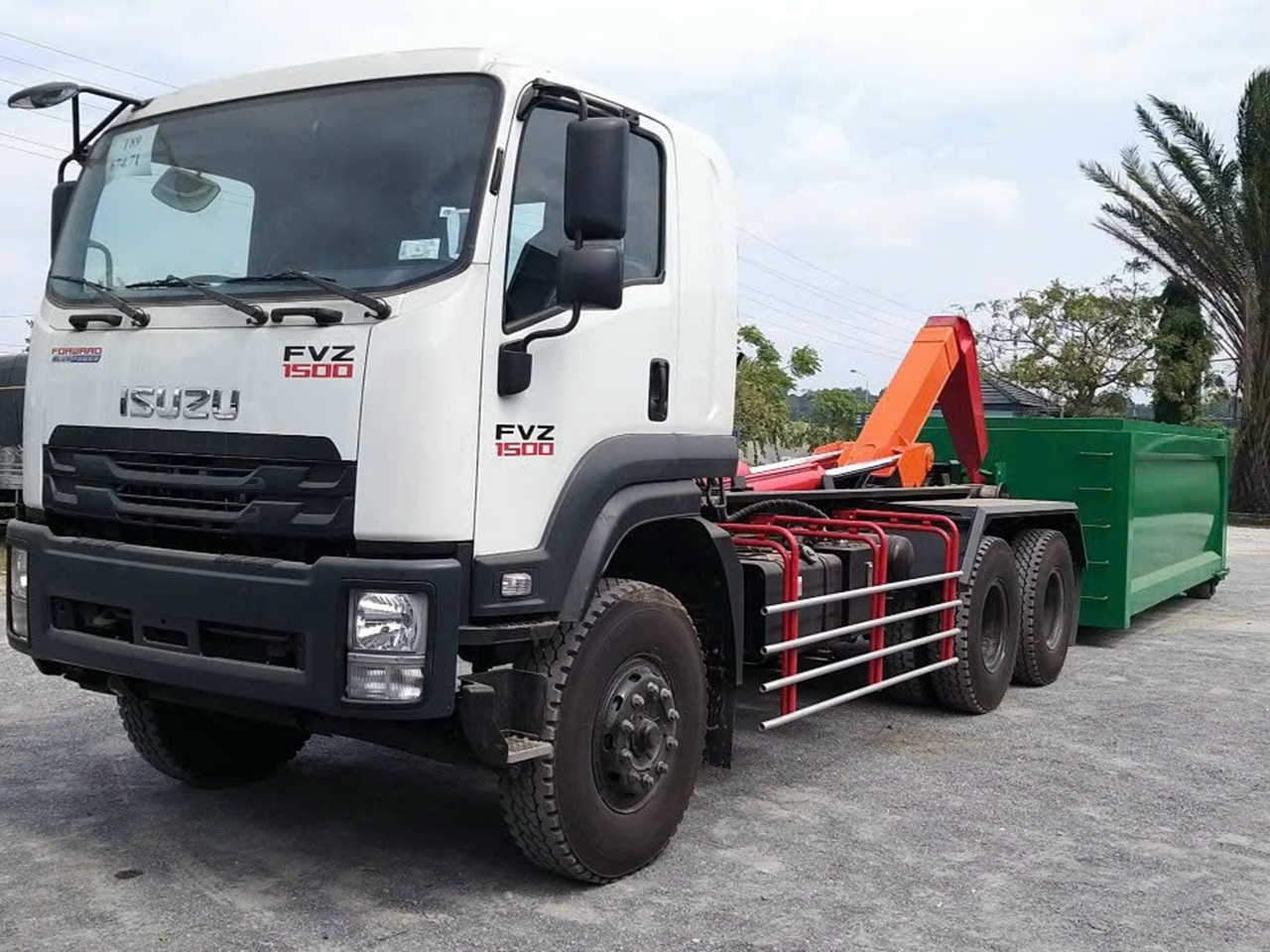

With the ability to easily lift and lower 22m³ containers, the detachable garbage truck helps optimize waste collection processes, saving time and manpower. The product is suitable for large projects and industrial zones.

Detailed Technical Specifications: ISUZU 10-ton garbage truck with a 22-cubic-meter container

Below are the complete technical specifications and detailed information of the product:

VEHICLE SPECIFICATIONS
Vehicle type	Garbage truck
Brand	ISUZU
Number of types	FVZ FVZ34QE4A
Wheel formula	6 x 4
Year of manufacture	202 5
Year of manufacture	202 5 , 100% new
Size
Outer dimensions	8 .34 0 x 2 . 500 x 3 .36 0 (mm)
Wheelbase	4 .115 + 1 .3 7 0 (mm)
Cargo bed dimensions (LxWxH)	5 .72 0 x 2 .30 0/ 2.12 0 x 1 .57 0 (mm)
Tank volume	19.37m ³. When using the entire volume of the container for loading, the density of the waste does not exceed 542.07 kg/m ³.
MASS
Dead weight	1 3 . 1 05 kg
Allowable weight to carry	10. 700 kg
Total mass	24,000 kg
ENGINE
Model	6HK1E4SC
Type	Diesel, 4-stroke, 6-cylinder in-line, direct fuel injection, water-cooled, turbocharger
Cylinder capacity	7,790 cm ³
TRANSMISSION
Clutch	1 disc, dry friction Drive: Hydraulic, pneumatic power assist
Gear	Mechanical 9 forward gears, 1 reverse gear
STEERING SYSTEM	Screw - ball nut Drive: Mechanical with hydraulic power assist
BRAKE SYSTEM
Main brake system	Drum brake pads Actuation: Hydraulic pneumatic control
Parking brake system	Drum brake pads Actuation: Mechanical, acting on the secondary shaft gear
SUSPENSION SYSTEM
Front suspension	Dependent, leaf spring, Hydraulic shock absorber
Rear suspension	Dependent, leaf spring
VEHICLE BRIDGE
Rear axle	Type: tube
TIRES	11.00R20
Quantity	11 (including spare tire)
SALOON	Load-bearing chassis/Tilt-type cabin
MOTION FEATURES
Maximum speed	120 km/h
Climbing ability	42.6%
Minimum turning radius	9.5 m
OTHER SPECIFICATIONS
Electrical system	02 Batteries -12V-65Ah
