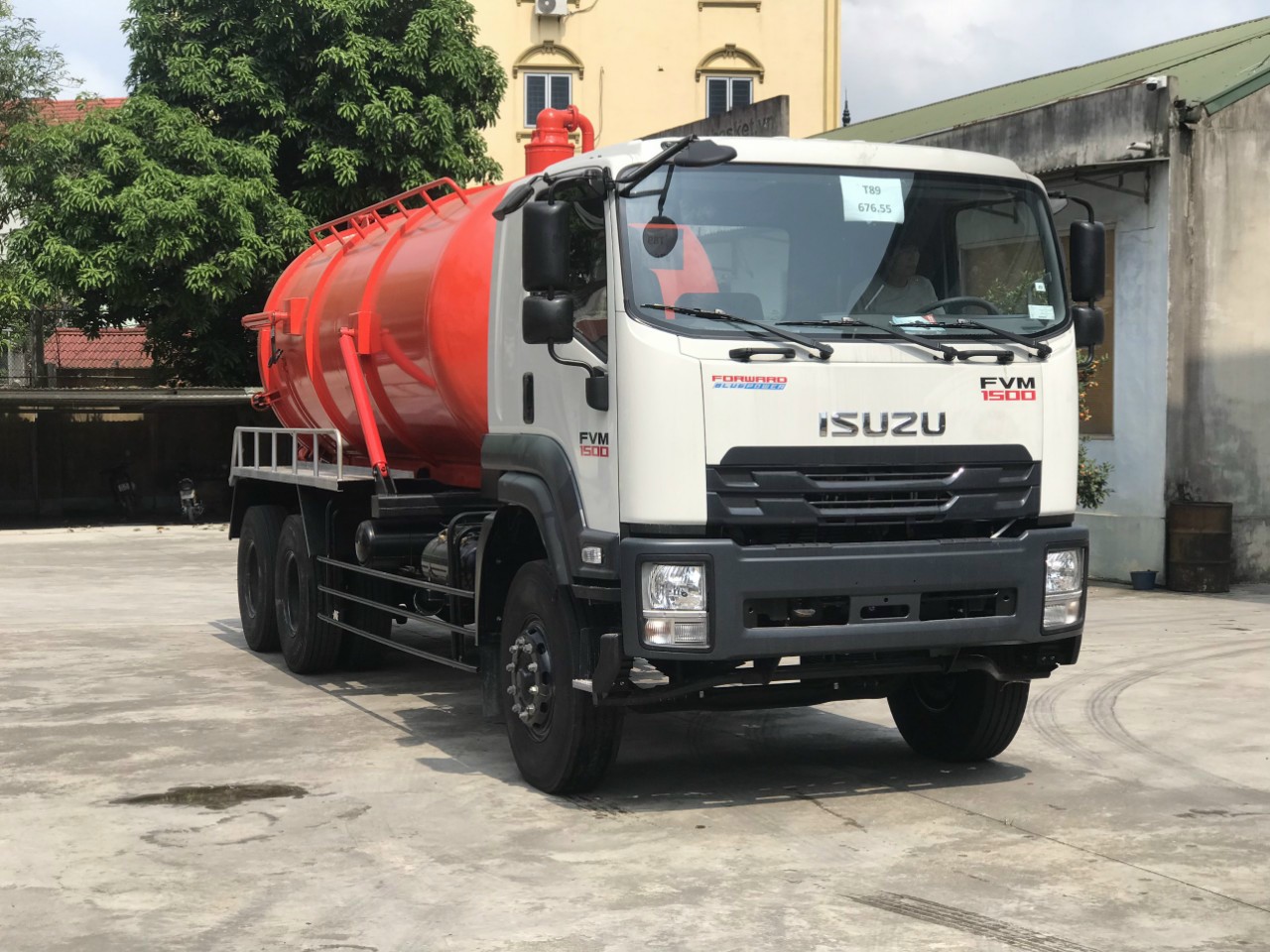

Isuzu 13m³ Sewage Suction Truck
.jpg)
- Product code: XE0023
- Group: Waste suction truck
- Style: Tanker
- Gross Vehicle Weight Rating: 24000 kg
- Wheel construction formula: 6x2 (3 axles, 1 driven axle)
- Manufacturer: Isuzu
- Payload range: From 8 tons and up
- Price range: From 2 billion to under 3 billion VND
Details of Isuzu 13m³ Sewage Suction Truck
The Isuzu 13m³ sewage suction truck is a premium specialized product in the field of liquid waste and sludge treatment. Equipped with powerful vacuum suction system and large capacity tank, the product has the ability to efficiently suction and transport waste.
Robust design and automatic control system help operators use easily. The product is particularly suitable for waste suction in industrial zones, hospitals, schools and construction projects.
Detailed Technical Specifications:
Below are the complete technical specifications and detailed information of the product:
| Thông số | Giá trị | Đơn vị | Ghi chú |
|---|---|---|---|
| TECHNICAL SPECIFICATIONS OF ISUZU 13M³ SEWAGE SUCTION TRUCK | |||
| GENERAL SPECIFICATIONS | |||
| Vehicle type | Sewage suction truck | - | - |
| Tank capacity | 13 | m³ | - |
| Manufacturer | Isuzu | - | - |
| Model | FVR34E5 | L | - |
| Year of manufacture | 2024 | - | - |
| ENGINE SPECIFICATIONS | |||
| Engine type | Diesel | - | - |
| Power | 250 | HP | - |
| Cylinder capacity | 6.0 | L | - |
| Cooling system | Water | - | - |
| Emission standard | Euro 5 | - | - |
| CHASSIS SPECIFICATIONS | |||
| Wheel formula | 4x2 | - | - |
| Payload | 10 tons | - | - |
| Length | 8.2 | m | - |
| Width | 2.4 | m | - |
| Height | 3.1 | m | - |
| SUCTION TANK SPECIFICATIONS | |||
| Capacity | 13 | m³ | - |
| Material | Stainless steel | - | - |
| Thickness | 5 | mm | - |
| Suction system | Vacuum | - | - |
| Suction pressure | 0.8 | MPa | - |
| Suction pipe diameter | 200 | mm | - |
| SYSTEM SPECIFICATIONS | |||
| Brake system | Air brake | - | - |
| Steering system | Power steering | - | - |
| Transmission | Automatic | - | - |
| Electrical system | 24 | V | - |
| Air conditioning | Yes | - | - |
| OPERATIONAL SPECIFICATIONS | |||
| Maximum speed | 85 | km/h | - |
| Fuel consumption | 25/100km | L | - |
| Braking distance | 32 | m | - |
| Climbing angle | 30 | % | - |
| Turning radius | 11 | m | - |
| WARRANTY SPECIFICATIONS | |||
| Engine warranty | 2 years/120,000km | - | - |
| Chassis warranty | 3 years/180,000km | - | - |
| Suction tank warranty | 1 year/60,000km | - | - |
| System warranty | 1 year/60,000km | - | - |
| PRICE SPECIFICATIONS | |||
| Listed price | 950,000,000ND | V | - |
| Promotional price | 900,000,000ND | V | - |
| Registration fee | 60,000,000ND | V | - |
| Insurance fee | 25,000,000ND | V | - |
| Total value | 985,000,000ND | V | - |
| ACCESSORY SPECIFICATIONS | |||
| GPS system | Yes | - | - |
| Rear camera | Yes | - | - |
| Warning system | Yes | - | - |
| LED lights | Yes | - | - |
| Anti-theft system | Yes | - | - |
| TRANSPORTATION SPECIFICATIONS | |||
| Delivery time | 20-25 days | - | - |
| Shipping fee | Free | - | - |
| Transport insurance | Yes | - | - |
| Installation support | Yes | - | - |
| User manual | Yes | - | - |
