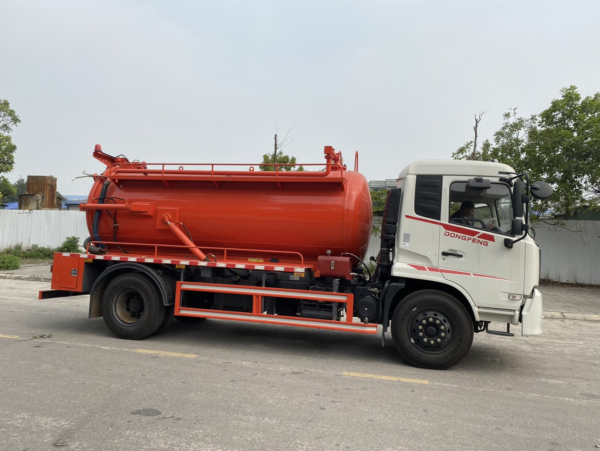

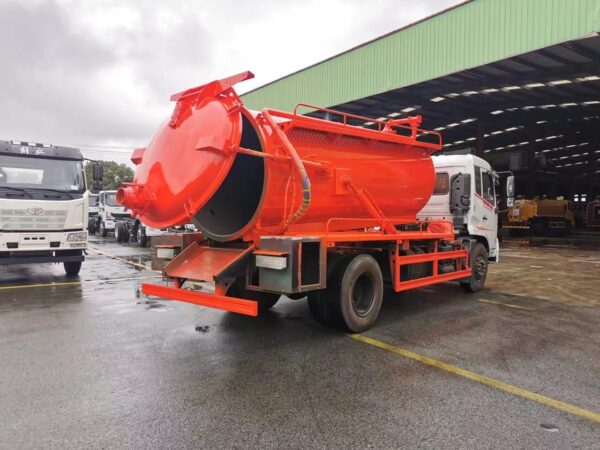

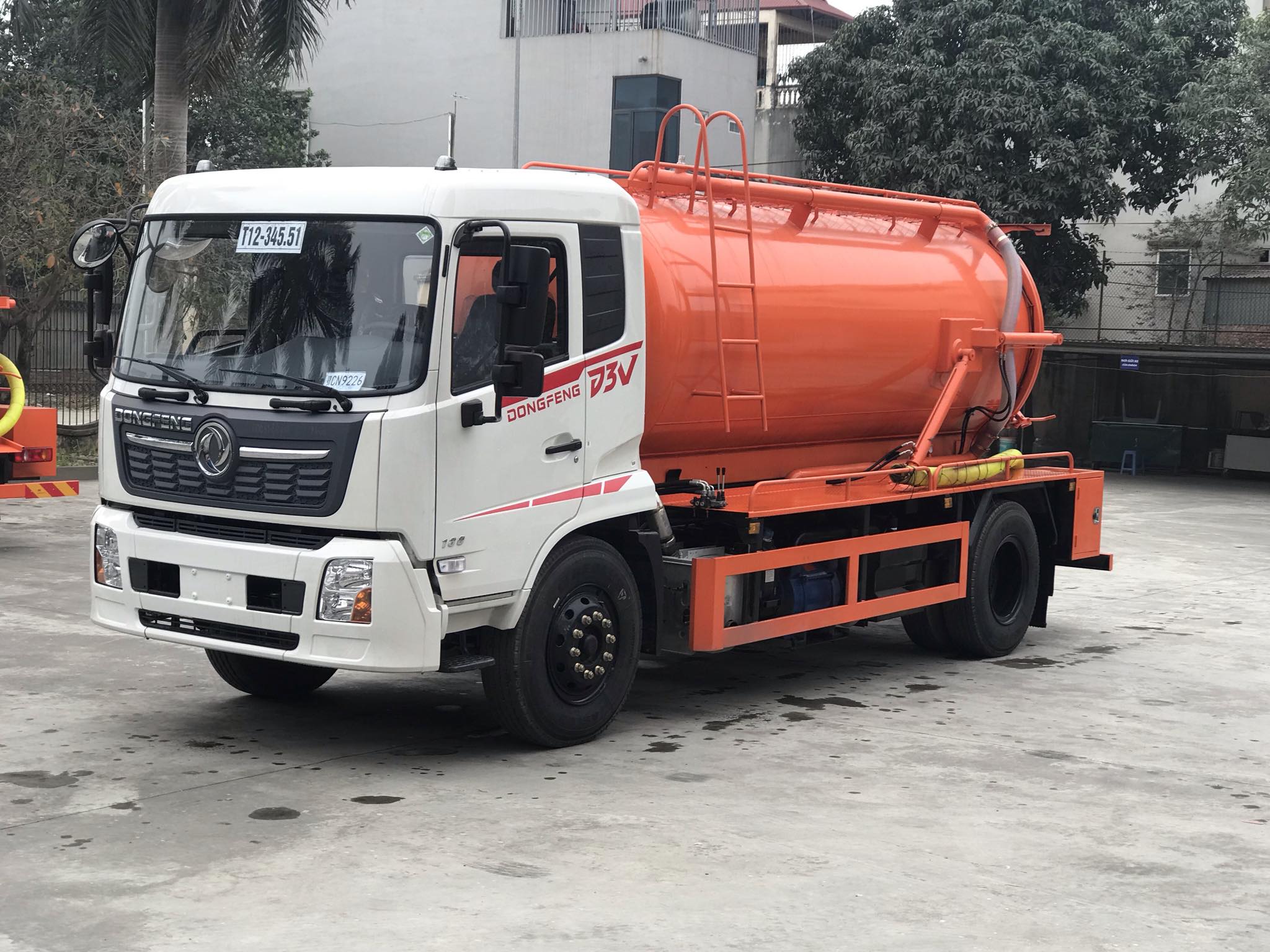

Dongfeng 9m³ Sewage Suction Truck
.jpg)
- Product code: XE0030
- Group: Waste suction truck
- Style: Tanker
- Gross Vehicle Weight Rating: 16000 kg
- Wheel construction formula: 4x2 (2 axles, 1 driven axle)
- Manufacturer: Dongfeng
- Payload range: From 8 tons and up
- Price range: From 600 million to under 1 billion VND
Details of Dongfeng 9m³ Sewage Suction Truck
The Dongfeng 9m³ sewage suction truck is a medium-sized specialized product in the field of liquid waste and sludge treatment. Equipped with efficient vacuum suction system and appropriate capacity tank, the product has the ability to flexibly suction and transport waste.
Robust design and automatic control system help operators use easily. The product is particularly suitable for waste suction in medium residential areas, schools and medium-scale construction projects.
Detailed Technical Specifications:
Below are the complete technical specifications and detailed information of the product:
| Thông số | Giá trị | Đơn vị | Ghi chú |
|---|---|---|---|
| TECHNICAL SPECIFICATIONS OF DONGFENG 9M³ SEWAGE SUCTION TRUCK | |||
| GENERAL SPECIFICATIONS | |||
| Vehicle type | Sewage suction truck | - | - |
| Tank capacity | 9 | m³ | - |
| Manufacturer | Dongfeng | - | - |
| Model | DFH1250A8 | - | - |
| Year of manufacture | 2024 | - | - |
| ENGINE SPECIFICATIONS | |||
| Engine type | Diesel | - | - |
| Power | 200 | HP | - |
| Cylinder capacity | 6.0 | L | - |
| Cooling system | Water | - | - |
| Emission standard | Euro 5 | - | - |
| CHASSIS SPECIFICATIONS | |||
| Wheel formula | 4x2 | - | - |
| Payload | 8 tons | - | - |
| Length | 7.8 | m | - |
| Width | 2.4 | m | - |
| Height | 3.0 | m | - |
| SUCTION TANK SPECIFICATIONS | |||
| Capacity | 9 | m³ | - |
| Material | Stainless steel | - | - |
| Thickness | 4 | mm | - |
| Suction system | Vacuum | - | - |
| Suction pressure | 0.7 | MPa | - |
| Suction pipe diameter | 180 | mm | - |
| SYSTEM SPECIFICATIONS | |||
| Brake system | Air brake | - | - |
| Steering system | Power steering | - | - |
| Transmission | Automatic | - | - |
| Electrical system | 24 | V | - |
| Air conditioning | Yes | - | - |
| OPERATIONAL SPECIFICATIONS | |||
| Maximum speed | 80 | km/h | - |
| Fuel consumption | 22/100km | L | - |
| Braking distance | 30 | m | - |
| Climbing angle | 30 | % | - |
| Turning radius | 10 | m | - |
| WARRANTY SPECIFICATIONS | |||
| Engine warranty | 2 years/100,000km | - | - |
| Chassis warranty | 3 years/150,000km | - | - |
| Suction tank warranty | 1 year/50,000km | - | - |
| System warranty | 1 year/50,000km | - | - |
| PRICE SPECIFICATIONS | |||
| Listed price | 750,000,000ND | V | - |
| Promotional price | 700,000,000ND | V | - |
| Registration fee | 45,000,000ND | V | - |
| Insurance fee | 20,000,000ND | V | - |
| Total value | 815,000,000ND | V | - |
| ACCESSORY SPECIFICATIONS | |||
| GPS system | Yes | - | - |
| Rear camera | Yes | - | - |
| Warning system | Yes | - | - |
| LED lights | Yes | - | - |
| Anti-theft system | Yes | - | - |
| TRANSPORTATION SPECIFICATIONS | |||
| Delivery time | 15-20 days | - | - |
| Shipping fee | Free | - | - |
| Transport insurance | Yes | - | - |
| Installation support | Yes | - | - |
| User manual | Yes | - | - |
