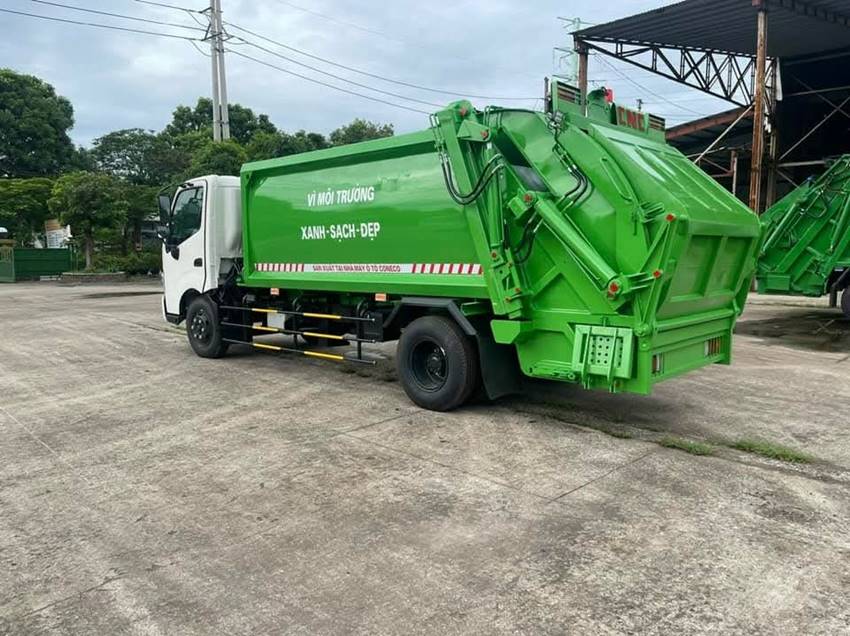

HINO XZU720 6-cubic-meter garbage compactor truck

Overview of 5-cubic-meter Hino 2-ton garbage truck

HINO 6-CUBIC GARMENT COMPRESSOR TRUCK is manufactured on the HINO 300 XZU720-WKMRS3 EURO V truck platform , one of the light trucks in the 300 series with Euro 5 emission standards and a payload of 3.5 tons, the latest introduced and distributed by Hino in the Vietnamese market. The Hino 300 XZU 720 EURO V 5-cubic-meter garbage compactor has a total designed payload of 7,400 kg. The cargo load of the garbage compactor is from 2.2 tons to 2.5 tons depending on the type of cargo box and the equipment installed on the vehicle. With a special compact design, it meets all transportation needs in urban areas in Vietnam.

EXTERIOR OF 6-CUBICLE GARBAGE COMPRESSOR TRUCK HINO XZU720 EURO5

• With Hino series 300 XZU720 EURO V has a completely new design.
• New cabin, new aerodynamic design reduces wind resistance when moving, helping the car save fuel.
• The completely new grille makes the car more powerful.
• High-power halogen headlights help drivers have good light when traveling at night.
• The projector headlights are located on the front bumper of the car.
• Dual rearview mirrors are a harmonious combination of flat mirrors and convex mirrors arranged on both sides of the car door to help the driver observe the entire vehicle.

• HINO 300 XZU720 TOTAL WEIGHT 7400 kg

INTERIOR OF 5-CUBICLE GARBAGE COMPRESSOR TRUCK HINO 300 XZU720-WKMRS3

• The interior of the Hino 300 XZU650 Euro5 garbage compactor is designed in a harmonious and sophisticated way.
• The driver's seat and passenger seat of the HINO 5-cubic-meter garbage compactor are covered with high-quality leather.
• Radio, FM and Bluetooth entertainment system
• Denso 2-way air conditioner with smart vents
• Inside the car cabin there are many convenient storage compartments.
• Multi-function smart clock display system located on the driver's dashboard.

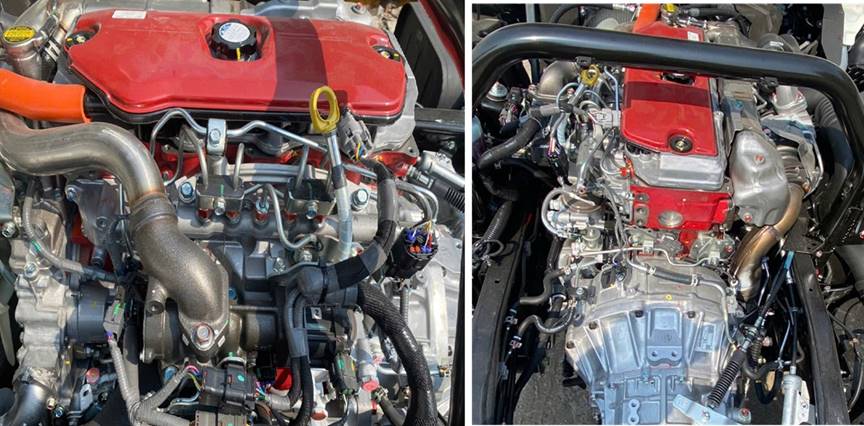

HINO 2.2 TON EURO 5 6-CUBIC TRUCK ENGINE

• HINO 5-CUBIC-CUBIC GARBAGE COMPRESSOR TRUCK EURO 5 is equipped with Hino N04C-WL 4-stroke, 4-cylinder in-line, turbocharged, intercooled Diesel engine.
• Cylinder capacity: 4009 cc
• Cylinder Bore x Piston Stroke (mm) “104x 118 mm
• Power: 150PS at 2500 rpm
• Maximum torque: 420N/M at 1400 – 1500 rpm
• Fuel supply system: electronically controlled fuel injection
• Emission standards: Euro 5
• Mechanical transmission: 5 forward gears + 01 reverse gear

6-CUBICLE HINO 300 2.2 TON GARBAGE COMPRESSOR

• Hino 300 XZU720 EURO V has a chassis that is stamped in one piece and imported completely from Hino Japan.
• Chasy Hino 300 3.5 ton E5 truck is designed with many round holes to help distribute weight evenly throughout the chasy.
• On the surface of the 3T4 Hino truck chassis there are no rivets, making it very convenient to install cargo boxes and other specialized equipment.
• Front suspension: Dependent suspension, semi-elliptic leaf springs (06 leaf springs), hydraulic shock absorbers, stabilizer bar.
• Rear suspension: Dependent suspension, semi-elliptic leaf springs (06 main leaf springs + 05 auxiliary leaf springs), hydraulic shock absorbers.

Specialized parameters for transporting garbage - compressing garbage on hino 6-cubic garage compressor truck
